LS-5130S-28S-LI-GL - H3C S5130S-LI Simplified Gigabit Access Switch :

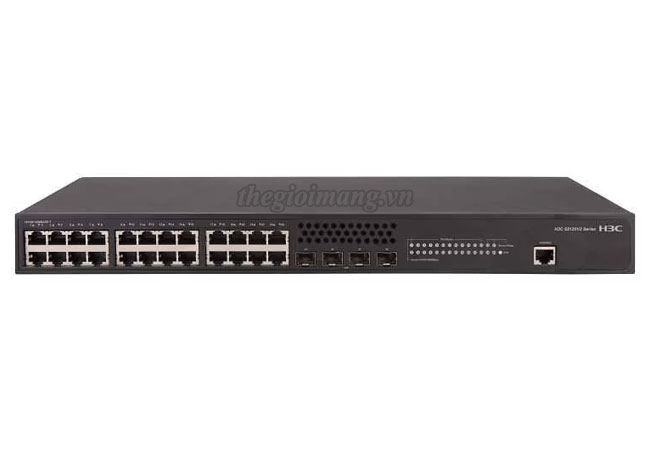

Thiết bị chuyển mạch Switch H3C LS-5130S-28S-LI-GL
| Model | LS-5130S-28S-LI-GL |
| Box switching capacity | • 336Gbps |
| Port switching capacity | • 128Gbps |
| Packet forwarding rate | • 96Mpps |
| Dimensions (H × W × D) | • 43.6 × 440 × 160 mm |
| Weight | • < 2.5 kg |
| Console ports | • 1 |
| Service ports | • 24-port 10/100/1000Base-T • 4-port SFP+ |
| Maximum Stacking bandwidth | • 80Gbps |
| MAX Stack num | • 9 |
| Input voltage range | • 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power consumption | • MIN AC: 10W • MAX AC: 24W |
| Operating temperature | • 0ºC to 45ºC |
| Operating humidity | • 10% RH to 90% RH, non-condensing |
| Stacking | • Intelligent Resilient Framework 2 (IRF2) |
| Link aggregation | • GE/10GE port aggregation • Static aggregation • Dynamic aggregation • M-LAG |
| Jumbo frame | • Supported |
| MAC address table | • Blackhole MAC address • MAC learning limit |
| Flow control | • 802.3x flow control and half-duplex backpressure |
| VLAN | • Port-based VLAN • QinQ • Voice VLAN • MAC VLAN |
| ARP | • ARP Detection • ARP speed limit |
| ND | • Supported |
| VLAN virtual port | • Supported |
| DHCP | • DHCP Client • DHCP Snooping • DHCP Relay • DHCP Server • DHCP Option82 |
| DNS | • Static and Dynamic DNS • IPV4 and IPV6 |
| Routing protocols | • IPV4/IPV6 static routing • RIP/RIPng, OSPFV1/V2/V3 |
| Strom suppression | • Storm suppression based on port bandwidth percentage • Storm suppression based on PPS |
| Layer 2 ring network protocol | • STP/RSTP/MSTP • STP Root Protection • Smart Link • RRPP |
| Mirroring | • Flow mirroring • Port mirroring |
| QoS/ACL | • Packet filter • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR • Bidirectional ACL • Port-based speed limit • Flow redirection • Time-range |
| Layer 2 ring network protocol | • STP/RSTP/MSTP • STP Root Protection • Smart Link • RRPP |
| Security | • Hierarchical user management and password protection • MAC-based authentication • 802.1X • SSH2.0 • Port isolation • IP source guard • HTTPs • EAD • RADIUS authentication • HWTACACS authentication |
| Loading and upgrading | • Loading and upgrading through FTP/TFTP |
| Management and maintenance | • Configuration from CLI • Login through Telnet, and the console port • Simple Network Management Protocol (SNMP) • Remote Monitoring (RMON) • IMC network management system • WEB management • System log • Alarming based on severity • IRF • NTP • Debugging information output • Telnet-based remote maintenance • NQA • DLDP • Virtual Cable Test |
| IEEE | • IEEE 802.3x • IEEE 802.3u • IEEE 802.3z • IEEE 802.3az • IEEE 802.3ab • IEEE 802.3ah • IEEE 802.3ad • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz • IEEE 802.1p • IEEE 802.1x • IEEE 802.1q • IEEE 802.1d • IEEE 802.1w • IEEE 802.1s • IEEE 802.1ax • IEEE 802.1ag |
LS-5130S-28S-LI-GL : H3C S5130S-28S-LI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports,(AC)
Data sheet H3C S5130S-LI Gigabit Access & 10G Uplink Switch Series
