LS-5560S-28P-SI-GL - H3C S5560S-SI Layer 3 Gigabit Switch :
Thiết bị chuyển mạch Switch Layer 3 H3C LS-5560S-28P-SI-GL
| Model | S5560S-28P-SI |
| Box switching capacity | • 598Gbps |
| Port switching capacity | • 56Gbps |
| Packet forwarding rate | • 42Mpps |
| CPU | • 1 Core, 800MHz |
| Dimensions (H × W × D) | • 43.6 × 440 × 160 mm |
| Weight | • < 2.5 kg |
| Management Ethernet ports | • 1 console port |
| SDRAM/Flash | • 512MB/256MB |
| Maximum stacking num | • 9 |
| Stacking bandwidth | • 16Gbps |
| Service ports | • 24 × 10/100/1000Base-T autosensing Ethernet ports • 4 × SFP ports |
| Power consumption | • MIN: AC 9W • MAX: AC 23W |
| Operating temperature | • 0ºC to 45ºC (32°F to 113°F) |
| Operating humidity | • 10% RH to 90% RH, non-condensing |
| Link aggregation | • 1G/10G port aggregation • Static aggregation • Dynamic aggregation • Multichassis link aggregation |
| Jumbo frame | • 10,000 byte |
| MAC address table | • Blackhole MAC address • MAC learning limit |
| Flow control | • 802.3x flow control and half-duplex backpressure |
| VLAN | • Port-based VLAN • QinQ • Voice VLAN • MAC VLAN |
| ARP | • ARP Detection • ARP speed limit |
| ND | • Supported |
| VLAN virtual port | • Supported |
| DHCP | • DHCP Client • DHCP Snooping • DHCP Relay • DHCP Server • DHCP Option82 |
| DNS | • Static and Dynamic DNS • IPV4 and IPV6 |
| Routing protocols | • IPV4/IPV6 static routing • RIP/RIPng, OSPFV1/V2/V3 |
| Strom suppression | • Storm suppression based on port bandwidth percentage • Storm suppression based on PPS • Storm suppression based on BPS • Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Layer 2 ring network protocol | • STP/RSTP/MSTP • STP Root Protection • Smart Link • RRPP |
| Mirroring | • Flow mirroring • Port mirroring |
| QoS/ACL | • Packet filter • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR • Bidirectional ACL • Port-based speed limiting • Flow redirection • Time-range • 802.1p priority mapping and DSCP priority mapping |
| Layer 2 ring network protocol | • STP/RSTP/MSTP/PVST+/RPVST+ • STP Root Protection • Smart Link • RRPP |
| Multicast | • IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2 • IGMP v1/v2/v3 and PIM-SM/PIM-SSM/PIM-DM |
| Security | • Hierarchical user management and password protection • MAC-based authentication • 802.1X authentication • RADIUS authentication, HWTACACS authentication • SSH2.0 • Port isolation • Port security • IP source guard • Dynamic ARP detection • BPDU guard and root guard • HTTPs • l EAD |
| Loading and upgrading | • Loading and upgrading through FTP/TFTP |
| Management and maintenance | • Configuration from CLI • Login through Telnet, and the console port • Simple Network Management Protocol (SNMP) • Remote Monitoring (RMON) • IMC network management system • WEB management • System log • Alarming based on severity • IRF2 • NTP • LLDP, LLDP-MED • Sflow • Debugging information output • Telnet-based remote maintenance • NQA • DLDP • Virtual Cable Test • Loopback detection |
LS-5560S-28P-SI-GL : H3C S5560S-28P-SI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)
Data sheet H3C S5560S-SI Layer 3 Gigabit Access Switch Series
LS-5560S-52P-SI-GL - H3C S5560S-SI Layer 3 Gigabit Switch...
Liên hệ để có giá tốt
LS-5560S-28S-SI-GL - H3C S5560S-SI Layer 3 Gigabit Switch...
Liên hệ để có giá tốt

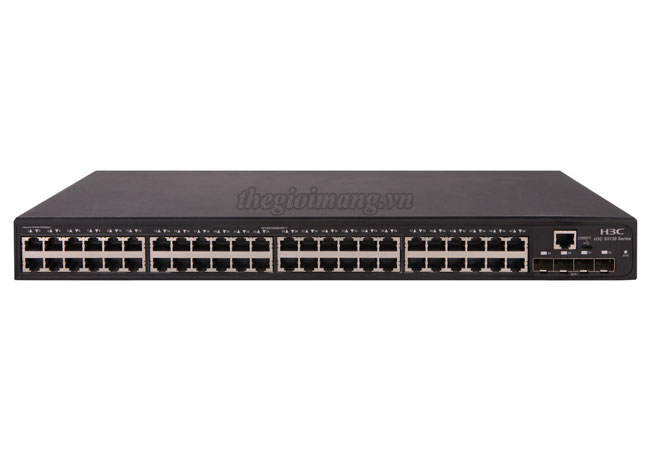

LS-5560S-52S-SI-GL - H3C S5560S-SI Layer 3 Gigabit Switch...
