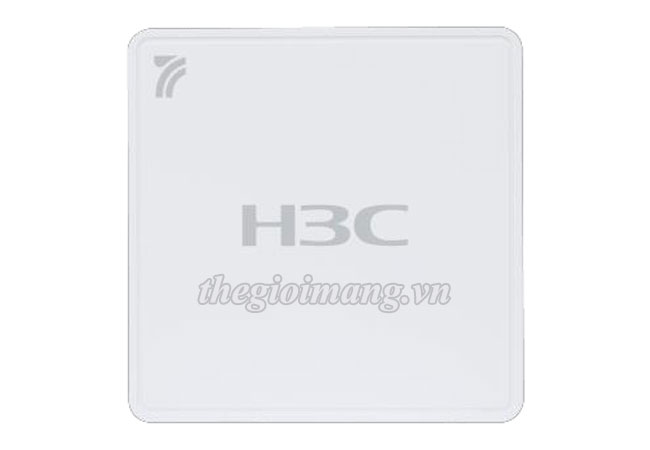

EWP-WA7322H-HI-FIT - Bộ phát Wi-Fi 7 gắn tường H3C WA7322H-HI
H3C WA7322H-HI là bộ truy cập Wi-Fi 7 thế hệ mới, tuân thủ chuẩn 802.11be. So với các sản phẩm Wi-Fi 6/6E, thiết bị này cung cấp tốc độ cao hơn, dung lượng lớn hơn và độ trễ thấp hơn, phù hợp với môi trường doanh nghiệp, cửa hàng bán lẻ, khách sạn và các khuôn viên doanh nghiệp thông minh.
Thông số kỹ thuật
| Model | EWP-WA7322H-HI-FIT |
| Hardware specifications | |
| Dimensions (W × D × H) | • 86 mm × 86 mm × 40 mm |

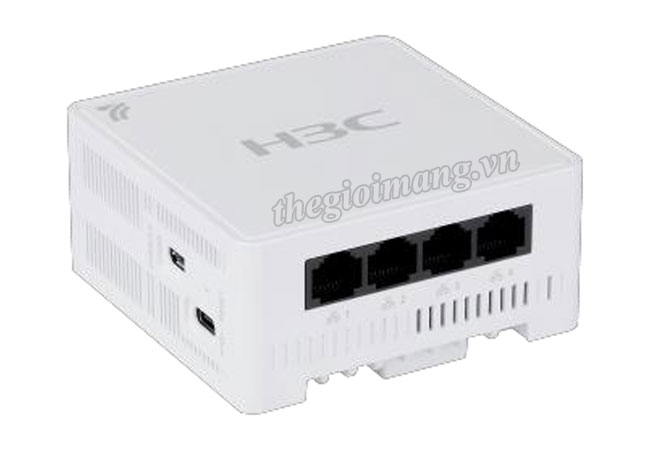

| Interface (Front Panel) | • 4 x 10/100/1000M Ethernet, downlink port, RJ-45 |
| Interface (Back Panel) | • 1 x 100/1000M/2.5G Multigigabit Ethernet, uplink port, RJ-45, PoE input |
| Console Port | • 1 × Micro-USB console port |
| USB Port | • 1 (2.0) at 2.5W |
| PoE Input | • 1 x 100/1000M/2.5G Multigigabit Ethernet, 802.3at/af |
| Antenna Type | • Built-in omni-directional antenna |
| Antenna Gain | • 6GHz: 5.2dBi, 5GHz: 5.0dBi, 2.4GHz: 4.0dBi |
| Frequency Bands | • 2.4GHz, 5GHz, 6GHz (various sub-bands per regulatory domain) |
| Modulation Technology | • OFDM, DSSS |
| Modulation Modes | • 11b, 11a/g, 11n, 11ac, 11ax, 11be |
| Max Transmit Power | • 6G: 20 dBm, 5G: 20 dBm, 2.4G: 20 dBm |
| Adjustable Power Granularity | • 1 dBm |
| Reset/Factory Restore | • Supported |
| Installation | • Wall mounting |
| LED Indicators | • Orange/Green/Blue for different states |
| Operating Temperature | • 0°C to +40°C |
| Storage Temperature | • –40°C to +70°C |
| Operating Humidity | • 5% to 95% (non-condensing) |
| Storage Humidity | • 5% to 95% (non-condensing) |
| Protection Class | • IP30 |
| Power Consumption (802.3at) | • 2x2 MIMO (6GHz, 5GHz, 2.4GHz), 2.5Gbps link speed, USB: Yes, Total: 15W |
| Power Consumption (802.3af) | • 2x2 MIMO (6GHz, 5GHz, 2.4GHz), 2.5Gbps link speed, USB: No, Total: 12.5W |
| Power Consumption (DC) | • 2x2 MIMO (6GHz, 5GHz, 2.4GHz), 2.5Gbps link speed, USB: Yes, Total: 15W |
| Safety Standards | • IEC/EN 62368-1, GB 4943.1 |
| EMC Standards | • EN 301 489-1/3/17, EN 55032, CISPR 32/35, IEC/EN 61000 series |
| Radio Standards | • ETSI EN 300 328, EN 301 893, FCC Part 15E, EN 303 687 |
| RoHS Compliance | • DIRECTIVE 2011/65/EU, (EU) 2015/863 |
| Health Standards | • EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | • 435 years |
| Software specifications | |
| Product Positioning | • Indoor, Dual-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Frequency and MIMO | • Dual-radio mode (1): 5GHz, 2×2:2, 2.882Gbps; 2.4GHz, 2×2:2, 0.688Gbps • Dual-radio mode (2): 6GHz, 2×2:2, 5.765Gbps; 2.4GHz, 2×2:2, 0.688Gbps |
| Compliance and Bandwidth | • 6GHz (802.11ax/be): 20/40/80/160/320MHz • 5GHz (802.11a/n/ac/ax/be): 20/40/80/160MHz • 2.4GHz (802.11b/g/n/ax/be): 20/40MHz |
| Maximum Transmission Speed | • 6.453 Gbps (2x2 320 MHz on 6 GHz and 2x2 40 MHz on 2.4 GHz) • 3.57 Gbps (2x2 160 MHz on 5 GHz and 2x2 40 MHz on 2.4 GHz) |
| Maximum Number of Clients | • 1024 (512 on 6GHz/5GHz, 512 on 2.4GHz) |
| Maximum SSIDs per Radio | • 16 |
| 802.11be Features | • 320MHz bandwidth, 4096-QAM, Multi-Link Operation (MLO), Preamble Puncturing, Multi-RU |
| 802.11ax Features | • MU-MIMO (DL/UL), OFDMA (DL/UL), TWT (Target Wake Time), BSS Coloring |
| WLAN Basics | • A-MPDU, A-MSDU, LDPC, STBC, DFS, TxBF, MRC, CDD/CSD |
| Tunnel Management | • CAPWAP tunnel, NAT, DTLS, IPv4/IPv6 support, PPPOE, EoGRE, IPsec (Cloud AP mode) |
| WLAN Extension | • Automatic channel/power/bandwidth adjustment, SSID hiding, user isolation, VLAN-based services |
| Load Balancing | • Traffic-based, user-based, frequency-band-based |
| Roaming | • 802.11k/v smart roaming, 802.11r fast transition roaming |
| Multicast Enhancement | • IPv4/IPv6 MLD Snooping/IGMP Snooping, multicast-to-unicast conversion |
| Wireless Location | • BLE location (Fit AP mode), RSSI location |
| IoT Support | • Built-in BLE, external RFID and ZigBee |
| Mesh | • Mesh link security, multi-hop Mesh |
| Hotspot 2.0 | • Supported in Fit AP mode |
| Authentication | • 802.1X, MAC authentication, Portal authentication, PSK/PPSK, Social Media authentication |
| Wireless Security | • WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, WPA3-Enhanced Open (OWE) |
| Advanced Security | • Packet filtering, MAC filtering, WIPS, IPSG (IP Source Guard) |
| Layer 2 & 3 Features | • Static/DHCP IP, IGMP/MLD Snooping, NAT, STP, IPv4/IPv6 support |
| Service Assurance | • Remote AP, Doctor AP, Spectrum Analysis, QoS, intelligent bandwidth guarantee |
| Power Saving | • Per-Packet Control (PPC), Green AP mode, U-APSD, SM Power Save |
| Management & Maintenance | • Fit AP mode (managed by AC), Cloud AP mode (managed by Cloudnet) |
| GUI Support | • Web management (HTTP/HTTPS) |
| SNMP | • SNMP v1/v2c/v3 |
| Debugging | • SSH v2.0, Telnet, CLI, Syslog |
| Secure Boot | • Ensures integrity via trusted Boot-Loader |
| Netconf Support | • Cloud AP mode supports Netconf for network device management |
| IEEE Standards | • 802.11a/b/g/n/ac/ac Wave 2/ax/be, 802.11d/e/h/i/w/u, 802.11k/v/r |
| Wi-Fi Certified | • Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2, WPA3 |
EWP-WA7322H-HI-FIT : H3C WA7322H-HI Internal Antennas 4 Streams Dual Radio 802.11be/ax/ac/n Wall jack Access Point (4*GE+1*2.5GE), FIT.
