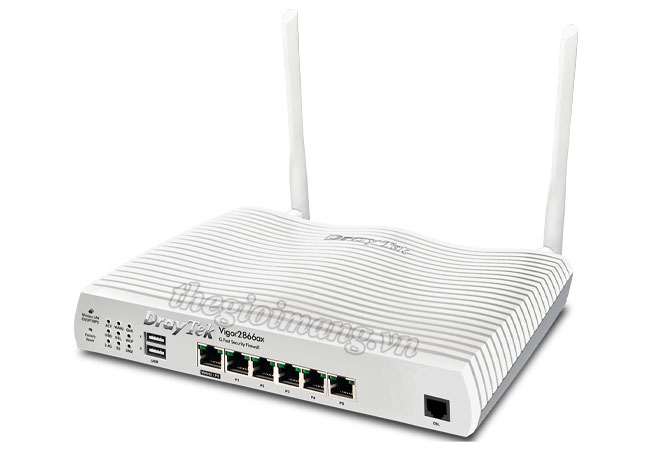

Thiết bị định tuyến DrayTek Vigor2866ax–Dual-WAN VPN Router WiFi-6 hỗ trợ G.fast, chuẩn 802.11ax 2x2 MU-MIMO OFDMA.
DrayTek Vigor2866ax là thiết bị định tuyến VPN Dual-WAN WiFi-6 chuẩn 802.11ax, hỗ trợ G.fast với tốc độ DSL lên đến 1 Gbps. WLAN đạt 574Mbps @2.4GHz và 2402Mbps @5GHz. Tốc độ Max. NAT với phần cứng tăng tốc là 940Mbps cho Single WAN và 1800Mbps cho Dual WAN. Thiết bị có 1 cổng RJ-11 DSL, 1 cổng WAN/LAN GbE chuyển đổi và 5 cổng LAN Gigabit. Hệ thống quản lý tập trung qua VigorACS, lý tưởng cho doanh nghiệp cần kết nối băng thông cao và bảo mật mạnh mẽ.
Thiết bị cân bằng tải Router Draytek Vigor2866 ax
| Product | Vigor2866ax |
|---|---|
| Interface | |
| Fixed WAN Port | 1 x RJ-11 for G.fast/VDSL2 35b/ADSL2+ |
| WAN/LAN Switchable Port | 1 x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 6) |
| Fixed LAN Port | 5 x 10/100/1000Base-TX, RJ-45 |
| USB Port | 2 x USB 2.0 or 1 x USB 2.0 (L model) |
| Wi-Fi Antenna | 2x External Dipole Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz |
| 2.4G WLAN | 802.11ax 2x2 MIMO 574Mbps |
| 5G WLAN | 802.11ax 2x2 MU-MIMO 2402Mbps |
| Performance | |
| NAT Throughput | 800 Mbps |
| NAT Throughput with hardware Acceleration | 940 Mbps (Single WAN) 1.8 Gbps (Dual WAN) |
| IPsec VPN Performance | 300 Mbps (AES 256 bits) |
| SSL VPN Performance | 130 Mbps |
| Max. Number of NAT Sessions | 60.000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent OpenVPN + SSL VPN | 16 |
| Physical | |
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 28.2 watts |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 620g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| VDSL/ADSL | |
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b) |
| ITU-T G.993.5 (Vectoring) | |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| G.fast Profile | 106Mhz, 212Mhz |
| Other Standards | ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| Internet Connection | |
| IPv4 | PPPoE,PPPoA,DHCP,Static IP,MPoA,PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Wireless WAN | 2 |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Strict ARP, Ping |
| Internet Connection Features | 802.1p/q Multi-VLAN Tagging |
| Multi-VLAN/PVC | |
| 3G/4G/LTE WAN with USB modem | |
| WAN Data Budge | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| LAN Management Features | LAN IP Alias |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing,Inter-VLAN Route,Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| SMB File Sharing | Requires external storage |
| Networking Features | High Availability |
| DNS Security (DNSSEC) | |
| Local RADIUS server | |
| VPN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| VPN Features | LAN-to-LAN |
| Teleworker-to-LAN | |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering,Port Knocking, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Categorysubscription required |
| Firewall & Content Filtering Features | IP-based Firewall Policy |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| Bandwidth Management Features | IP-based Bandwidth Limit |
| IP-based Session Limit | |
| VoIP Prioritization,APP Qos | |
| Wireless LAN | |
| Number of SSID | 4 per radio band |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| Wireless LAN Features | AirTime Fairness |
| Band Steering | |
| MU-MIMO5GHz Only | |
| WMM | |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Compatibility | Vigor2865, Vigor2862, Vigor2860 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Central VPN Management | 8 VPN |
| Central AP Management | 20 VigorAP |
| Mesh Network | 7 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| Management Features | Config File Export & Import |
| 2-Level Administration Privilege | |
| Syslog | |
| Managed by VigorACS V4.3.2 | |
