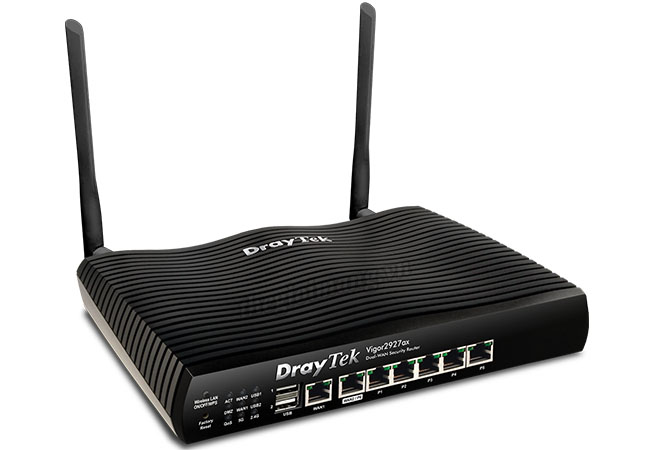

| Data sheet DrayTek Vigor2927ax |
| Internet Connection |
| IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 |
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Wireless WAN |
2 |
| Load Balancing |
IP-based, Session-based |
| WAN Active on Demand |
Link Failure, Traffic Threshold |
| Connection Detection |
ARP, Ping |
| Internet Connection Features |
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
3G/4G/LTE WAN with USB modem
WAN Data Budge
Dynamic DNS
DrayDDNS |
| LAN Management |
| VLAN |
802.1q Tag-based, Port-based |
| Max. Number of VLAN |
16 |
| Number of LAN Subnet |
8 |
| DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Hotspot Authentication |
Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| LAN Management Features |
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal |
| Networking |
| Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
| IGMP |
IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| SMB File Sharing |
Requires external storage |
| Networking Features |
High Availability
DNS Security (DNSSEC)
Local RADIUS server |
| VPN |
| Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication |
Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication |
Pre-Shared Key, X.509 |
| IPsec Authentication |
SHA-1, SHA-256 |
| Encryption |
MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) |
Load Balancing, Failover |
| VPN Features |
LAN-to-LAN
Teleworker-to-LAN
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher |
| Firewall & Content Filtering |
| NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
| VPN Pass-Through |
PPTP, L2TP, IPsec |
| Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Categorysubscription required |
| Firewall & Content Filtering Features |
IP-based Firewall Policy
DoS Attack Defense
Spoofing Defense |
| Bandwidth Management |
| QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port, Application |
| Bandwidth Management Features |
IP-based Bandwidth Limit
IP-based Session Limit
VoIP Prioritization |
| Wireless LAN |
| Number of SSID |
4 per radio band |
| Security Mode |
OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication |
Pre-Shared Key, 802.1X |
| WPS |
PIN, PBC |
| WDS |
Repeater (5GHz only) |
| Access Control |
Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| Wireless LAN Features |
AirTime Fairness
Band Steering
MU-MIMO5GHz Only
WMM |
| Management |
| Local Service |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Compatibility |
Vigor2926 |
| Firmware Upgrade |
TFTP, HTTP, TR-069 |
| Access Control |
Access List, Brute Force Protection |
| Notification Alert |
SMS, E-mail |
| SNMP |
v1, v2c, v3 |
| Central VPN Management |
8 VPN |
| Central AP Management |
20 VigorAP |
| Mesh Network |
7 VigorAP |
| Central Switch Management |
10 VigorSwitch |
| Management Features |
Config File Export & Import
2-Level Administration Privilege
Syslog
Managed by VigorACS |
