Trendnet TEW-755AP2KAC N300 Wireless Controller Kit : ● Centralized AP management ● Includes two wireless N300 access points with PoE injectors ● Wireless controller with five gigabit ports ● Manages up to 128 wireless access points ● Compatible with TEW-755AP, TEW-821DAP, TEW-825DAP and TEW-826DAP ● Supports IEEE 802.11k radio resource management and 802.11r fast roaming.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

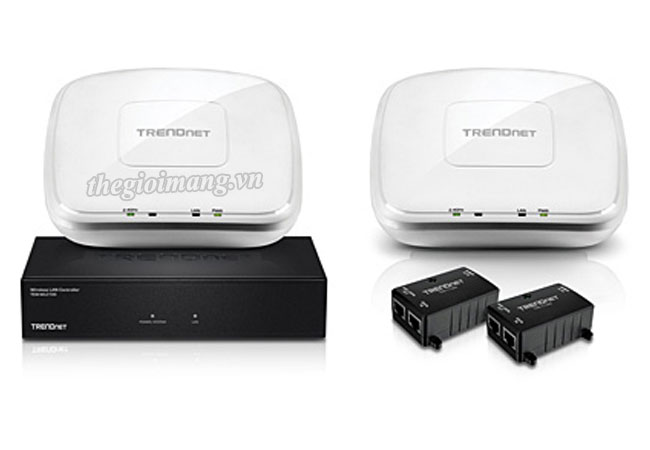

Bộ Wireless Controller Kit Trendnet TEW-755AP2KAC

Model	TEW-755AP2KAC
Wireless Controller
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
Device Interface	5 x Gigabit ports 1 x USB port On / Off Power button LED indicators Reset button
Management	HTTP Web based GUI Local or online firmware upgrade Internal log Configuration Backup / Restore NTP
Access Point Management	Manage up to 128 access points IP address, gateway, and DNS settings SSID / Network name Wireless channel Wireless encryption: WEP, WPA / WPA2-Personal, WPA / WPA2-Enterprise 802.11 mode Channel width Transmit power SSID broadcast Bandwidth control (download limit per SSID & client, upload limit per client) Set RSSI scanning / threshold Seamless WiFi roaming using 802.11r and OKC (opportunistic key caching) protocols 802.11k radio resource management Airtime Fairness Band steering Access point / client statistics monitoring Batch firmware upgrade deployment Captive portal Client blacklist 802.1Q VLAN Create multiple access point groups for management flexibility Upload custom floor plans using WAP Maps^™
Access Point Compatibility	TEW-755AP (Firmware Version: 1.04 or above) TEW-821DAP (Firmware Version: 1.06 or above) TEW-825DAP (Firmware Version: 1.02 or above) TEW-826DAP (Firmware Version: 1.00 or above)
Power	Input: 100 – 240 V AC, 50/60 Hz Output: 12 V DC, 1 A external power adapter Consumption: 12 W (max.)
Operating Temperature	0 – 40°C (32 – 104°F) Max. 90% non-condensing
Dimensions	215 x 130 x 44.45 mm (8.27 x 6.3 x 1.73 in.) Rack mountable 1U height
Weight	670 g (1.5 lbs.)
Certifications	CE FCC
N300 PoE Access Point
Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps)
Device Interface	1 x PoE Gigabit LAN port Power port (optional non-PoE installation) Reset button LED indicators Mounting plate
Special Features	IP30 rated housing (with mounting plate installed) WiFi traffic shaping 802.1Q VLAN assignment per SSID IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC / DHCPv6) Multi-Language interface, English, French, Spanish, German, Russian LEDs on/off Captive Portal (External Coovachilli server authentication) Internal Captive Portal (Local user account authentication and customizable portal page) 802.11k radio resource management RSSI Scanner (Client signal strength and tolerance) Airtime Fairness
Operation Modes	Access Point Client WDS AP WDS Bridge WDS Station Repeater
Management / Monitoring	Web based management SNMP v1/v3 STP Event logging Ping test Traceroute CLI
Access Control	Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS MAC filter Maximum client limit
QoS	WMM Traffic shaping per SSID
SSID	Up to 8 SSIDs per access point
Frequency	2.4 GHz: 2.412 - 2.472 GHz
Wireless Channels	2.4 GHz: FCC: 1-11, ETSI: 1 – 13
Modulation	DBPSK / DQPSK / CCK for DSSS technique BPSK / QPSK / 16-QAM / 64-QAM for OFDM technique
Antenna Gain	2.4 GHz: 2 x 4 dBi
Wireless Output Power / Receiving Sensitivity	802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max.) / -83 dBm (typical) @ 11 Mbps 802.11g: 19 dBm (Max.), CE: 12 dBm (Max.) / -65 dBm (typical) @ 54 Mbps 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.) / -64 dBm (typical) @ 300 Mbps
Power	12 V DC / 1 A or PoE, consumption: 9.6 Watts Max.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.) per access point
Weight	402 g (14.2 oz.) per access point
Certifications	CE FCC IC
