Mô tả sản phẩm

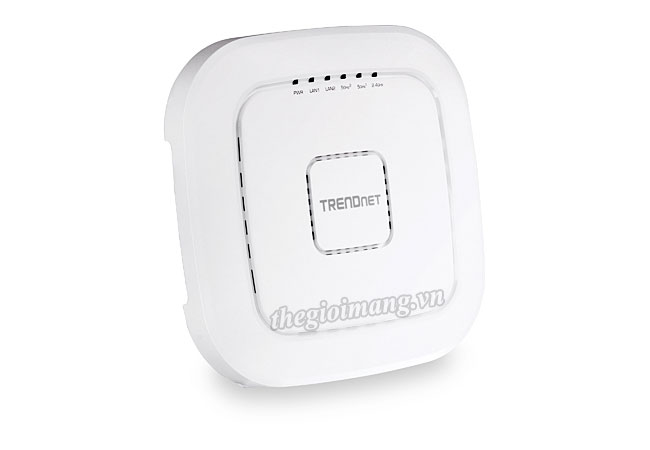

Thiết bị Access Point Trendnet TEW-826DAP

Model	TEW-826DAP
Hardware Interface	1 x PoE+ Gigabit LAN port (power input) 1 x Gigabit LAN port Power port (optional non-PoE installation) LED indicators Mounting plate and cable guard On/Off power button Reset button
Features	802.11ac MU-MIMO Wave 2 support IP30 rated housing (with mounting plate and cable guard installed) Concurrent Tri-Band Band steering WiFi traffic shaping 802.1Q VLAN assignment per SSID IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)) Multi-Language interface, English, French, Spanish, German, Russian LEDs on/off External Captive Portal (Coovachilli server authentication) Internal Captive Portal (Local user account authentication and customizable portal page) 802.11k intelligent radio resource management RSSI Threshold (client signal strength and connectivity control) Airtime Fairness
Operation Modes	Access Point Client Bridge WDS AP WDS Bridge WDS Station Repeater
Management/Monitoring	Web based management AP software utility SNMP v1/v3 STP Event logging Ping test Traceroute Telnet
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS MAC filter Maximum client limit
QoS	WMM Bandwidth control per SSID or client
SSID	Up to 8 SSIDs per wireless band (24 total)
Frequency	2.4GHz: 2.412 – 2.472GHz 5GHz¹: 5.180 – 5.320GHz 5GHz²: 5.500 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1 – 13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain	2.4GHz: 2 x 4 dBi internal 5GHz¹: 2 x 4 dBi internal 5Ghz²: 2 x 4 dBi internal
Wireless Output Power	802.11a: FCC: 27.76 dBm (max.) / CE: 28.4 dBm (max.) / IC: 30.18 dBm (max.) 802.11b: FCC: 29.22 dBm (max.) / CE: 17.82 dBm (max.) / IC: 30.79 dBm (max.) 802.11g: FCC: 28.2 dBm (max.) / CE: 18.71 dBm (max.) / IC: 30.23 dBm (max.) 802.11n (2.4GHz): FCC: 28.56 dBm (max.) / CE: 18.79 dBm (max.) / IC: 30.41 dBm (max.) 802.11n (5GHz): FCC: 28.74 dBm (max.) / CE: 28.74 dBm (max.) / IC: 30.37 dBm (max.) 802.11ac: FCC: 27.45 dBm (max.) / CE: 28.74 dBm (max.) / IC: 29.55 dBm (max.)
Receiving Sensitivity	802.11a: -70 dBm (typical) @ 54 Mbps 802.11b: -85 dBm (typical) @ 11 Mbps 802.11g: -72 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400 Mbps 802.11ac: -64 dBm (typical) @ 867 Mbps
Power	IEEE 802.3at Type 2 PoE PD Class 4 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 2A external power adapter (optional) Max. consumption: 18.96W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC IC
Dimensions	214 x 214 x 36mm (8.4 x 8.4 x 1.4 in.)
Weight	684g (1.51 lbs.)

Xem thêm

Thông số kỹ thuật

High performance AC2200 PoE+ WiFi access point
Wireless AC wave 2 MU-MIMO technology boosts performance in a busy environment
Three concurrent WiFi bands maximize device networking speeds
AC2200 Tri-Band: 867Mbps (5GHz¹) + 867Mbps (5GHz²) + 400Mbps (2.4GHz) bands
Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
1 x Gigabit PoE+ LAN port, 1 x Gigabit LAN port
Low-profile housing blends into most environments
Includes wall / ceiling mounting plate with cable guard
Captive portal for hotspot applications
Compatible with TRENDnet's TEW-WLC100 and TEW-WLC100P wireless controllers
