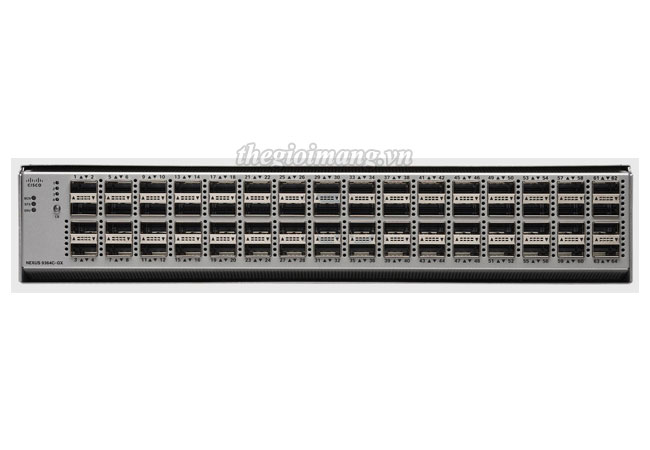

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C9364C-GX
Model | N9K-C9364C-GX |
Ports | ● 64 x 100/40-Gbps QSFP28 ports |
Supported speeds | ● 40/100-Gbps ● Breakout supported: ● 2x50, 2x25, 2x10 on all ports ● 4x10, 4x25G on all odd numbered ports ● 10G w/QSA |
CPU | ● 4 cores |
System memory | ● Up to 32 GB |
SSD Drive | ● 128 GB |
System buffer | ● 80 MB |
Management ports | ● 2 ports: 1 RJ-45 and 1 SFP |
USB Ports | ● 1 |
RS-232 serial ports | ● 1 |
Power Supplies | ● 2000W AC, 2000W DC, 2000W HVAC/HVDC |
Typical power (AC) | ● 811W |
Maximum power (AC) | ● 1622W |
Input voltage (AC) | ● 100 to 240V |
Input voltage (High Voltage AC [HVAC]) | ● 100 to 277V |
Input voltage (DC) | ● –40 to –72V |
Input voltage (High Voltage DC [HVDC]) | ● –240 to –380V |
Frequency (AC) | ● 50 to 60 Hz |
Fans | ● 3+1 redundancy |
Airflow | ● Port-side intake and exhaust |
Physical dimensions (H x W x D) | ● Dimensions (H x W x D): 3.39 x 17.41 x 22.59 in. (8.61 x 44.23 x 57.4 cm) |
Acoustics | ● 77.3 dBA at 50% fan speed, 88.6 dBA at 70% fan speed, and 95.8 dBA at 100% fan speed |
RoHS compliance | ● Yes |
Mean Time Between Failure (MTBF) | ● 237,760 hours |
Minimum ACI image | ● ACI-N9KDK9-14.2(3) |
Minimum NX-OS image | ● NXOS-9.3.3 |
Performance and scalability | |
Maximum number of IPv4 Longest Prefix Match (LPM) routes | 896,000 |
Maximum number of IPv4 host entries | 896,000 |
Maximum number of MAC address entries | 256,000 |
Maximum number of multicast routes | 32,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8000 Maximum: 32,000 |
Maximum number of Access-Control-List (ACL) entries | Per slice of the forwarding engine: ● 5000 ingress ● 2000 egress ● Max: 20,000 ingress, 8000 egress |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1000 Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 512 |
Maximum number of links in a port channel | 32 |
Number of active SPAN sessions | 4 |
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 3967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
Number of Network Address Translation (NAT) entries | 1023 |
Weight | |
Cisco Nexus 9364C-GX without power supplies or fans | 29.2 lbs (13.2 kg) |
N9K-C9364C-GX : Nexus 9364C Spine and Leaf switch with 64p 100/40G QSFP28
