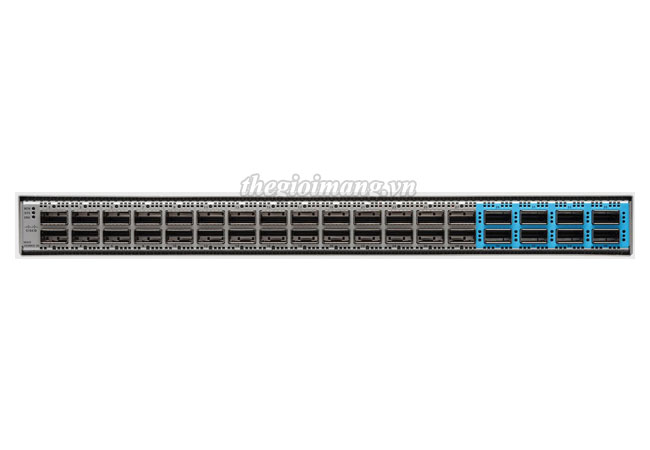

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C93600CD-GX
| Model | N9K-C93600CD-GX |
| Ports | ● 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports |
| Supported speeds | ● 40/100-Gbps on downlinks ● 40/100/400-Gbps on uplinks ● Breakout supported on ports, 25-36: 2x50, 4x10, 4x25G ● 10G w/QSA |
| CPU | ● 4 cores |
| System memory | ● 32 GB |
| SSD Drive | ● 128 GB |
| System buffer | ● 80 MB |
| Management ports | ● 2 ports: 1 RJ-45 and 1 SFP |
| USB Ports | ● 1 |
| RS-232 serial ports | ● 1 |
| Power Supplies | ● 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| Typical power (AC) | ● 586W |
| Maximum power (AC) | ● 1071W |
| Input voltage (AC) | ● 100 to 240V |
| Input voltage (High Voltage AC [HVAC]) | ● 100 to 277V |
| Input voltage (DC) | ● –40 to –72V |
| Input voltage (High Voltage DC [HVDC]) | ● –240 to –380V |
| Frequency (AC) | ● 50 to 60 Hz |
| Fans | ● 5+1 redundancy |
| Airflow | ● Port-side intake and exhaust |
| Physical dimensions (H x W x D) | ● (H x W x D): 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm) |
| Acoustics | ● 73.2 dBA at 50% fan speed, 81.8 dBA at 70% fan speed, and 88.8 dBA at 100% fan speed |
| RoHS compliance | ● Yes |
| Mean Time Between Failure (MTBF) | ● 295,515 hours |
| Minimum ACI image | ● ACI-N9KDK9-14.2(2e) |
| Minimum NX-OS image | ● NXOS-9.3.3 |
| Performance and scalability | |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes | 896,000 |
| Maximum number of IPv4 host entries | 896,000 |
| Maximum number of MAC address entries | 256,000 |
| Maximum number of multicast routes | 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8000 Maximum: 32,000 |
| Maximum number of Access-Control-List (ACL) entries | Per slice of the forwarding engine: ● 5000 ingress ● 2000 egress ● Max: 20,000 ingress, 8000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 3967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Number of Network Address Translation (NAT) entries | 1023 |
| Weight | |
| Cisco Nexus 93600CD-GX without power supplies or fans | 28 lbs (12.7 kg) |
N9K-C93600CD-GX : Nexus 93600CD Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD
Data sheet Cisco Nexus 9300-GX Series Switches
