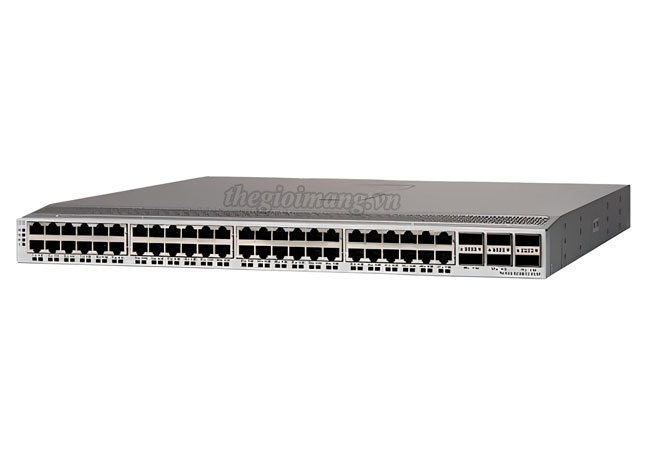

N9K-C93108TC-FX3P - Cisco Nexus 93108TC-FX3P Switch :
Thiết bị chuyển mạch Switch Cisco Nexus N9K-C93108TC-FX3P
| Model | N9K-C93108TC-FX3P |
| Ports | Downlinks: 48 x 100M/1/2.5/5/10G BASE-T multigigabit supported ports Uplinks: 6 x 40/100G QSFP28 ports |
| CPU | 4 cores |
| System memory | 32 GB capable with 16G defaulted and 16G available as upgradeable option |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies | 1100W AC port-side intake and port-side exhaust 1900W AC port-side intake only |
| Switch Average Power (AC) | 360W |
| Switch Maximum Power (AC) | 530W |
| BTU/hr | 1706 |
| Frequency (AC) | 50 to 60 Hz |
| Airflow | Port-side intake and port-side exhaust |
| Physical dimensions (H x W x D) | 1.72 x 17.2 x 18 in |
| Acoustics | 70.1 dBA at 50% fan speed, 78.1 dBA at 70% fan speed, and 86 dBA at 100% fan speed |
| Mean Time Between Failures (MTBF) | 283,100 hours |
| Switch without power supplies and fans | 7.25 kg |
| Power supplies, 1100W AC | 1.36 kg |
| Power supplies, 1900W AC | 1.63 kg |
| Fans: NXA-FAN-35CFM-F or NXA-FAN-35CFM-B | 0.12 kg |
| Minimum NX-OS image | NXOS-9.3.5 |
| Minimum ACI Image | ACI-N9KDK9-15.1.3 |
| Hardware performance and scalability | |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes | 1792000 |
| Maximum number of IPv4 host entries | 1792000 |
| Maximum number of IPv6 Longest Prefix Match (LPM) routes | 896000 |
| Maximum number of IPv6 host entries | 1792000 |
| Maximum number of MAC address entries | 512000 |
| Maximum number of multicast routes | 128000 |
| Number of Internet Group Management Protocol (IGMP) snooping groups | Shipping: 8000 Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Single-slice forwarding engine: 5000 ingress 2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 3967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Number of queues | 8 |
| Environmental | |
| Operating temperature | 32 to 131°F (0 to 55°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 6561 ft (0 to 2000m) |
