Thiết bị mạng Switch Cisco Nexus N9K-C9348GC-FXP
| Mã sản phẩm | N9K-C9348GC-FXP |
| Characteristics | |
| Ports | 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports |
| Downlink supported speeds | 100-Mbps and 1-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 350W AC, 440W DC |
| Typical power (AC/DC) | 178W |
| Maximum power (AC/DC) | 287W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) | 90 to 305V |
| Input voltage (DC) | -36V to -72V |
| Input voltage (High-Voltage DC [HVDC]) | 192 to 400V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) | 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 49.9 cm) |
| Acoustics | 67.5 dBA at 50% fan speed, 73.2 dBA at 70% fan speed, and 81.6 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 257,860 hours |
| Minimum ACI image | ACI-N9KDK9-13.0 |
| Minimum NX-OS image | NXOS-703I7.1 |
| Hardware performance and scalability specifications | |
| Maximum number of Longest Prefix Match (LPM) routes | 1,792,000 |
| Maximum number of IP host entries | 1,792,000 |
| Maximum number of MAC address entries | 512,000 |
| Maximum number of multicast routes | 128,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000 Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Single-slice forwarding engine: 5000 ingress 2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Number of Queues | 8 |
| Environmental properties | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight | |
| Weight without power supplies or fans | 14.2 lb (6.44 kg) |

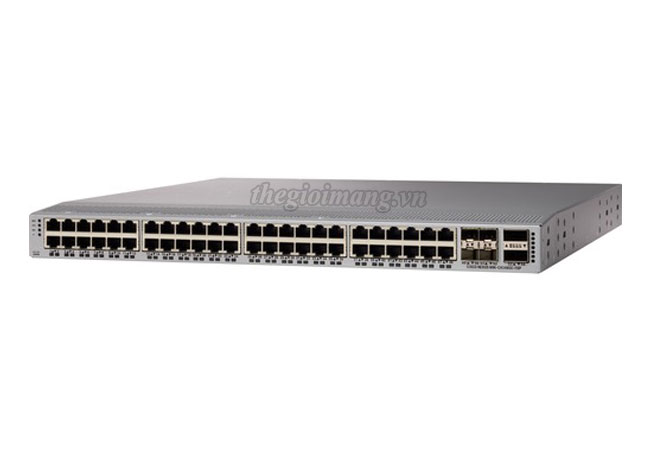

Nexus N9K-C9348GC-FXP - Nexus 9300 with 48p 100M/1G BASE-T, 4p 1/10/25G SFP28 and 2p 40G/100G QSFP28
