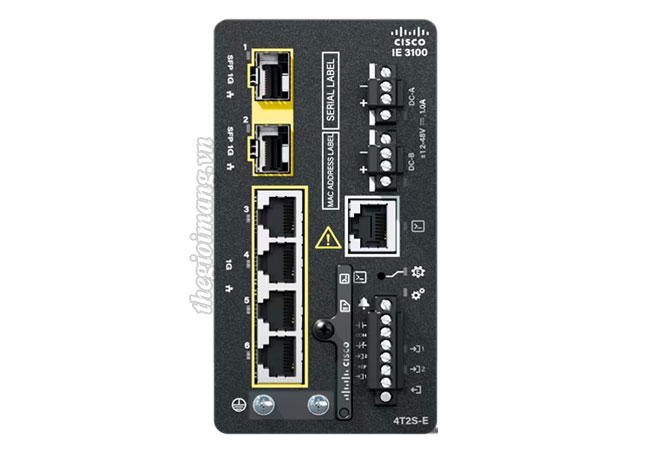

Cisco IE-3100-4T2S-E​

IE-3100-4T2S-E​ - Cisco Catalyst IE3100 Rugged Switch :

  • 4 x 10/100/1000 Mbps RJ-45 ports
  • 2 x 1G SFP fiber ports
  • Network Essentials
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Industrial Cisco IE-3100-4T2S-E​

Model IE-3100-4T2S-E
Hardware specifications
10/100/1000 Mbps RJ-45 ports (downlinks) • 4
1G SFP fiber ports (uplinks) • 2
Software license • Network Essentials
Removable storage • SD card
Alarms • 2 dry-contact alarm inputs
Console ports • 1 RS-232 (via RJ-45), 1 Micro USB
Power inputs • DC power inputs
Performance and scalability features
Forwarding rate • Line rate for all ports and all packet sizes
Number of queues • 8 egress
Unicast MAC addresses • 8000
Internet Group Management Protocol (IGMP) multicast groups • 512
VLANs • 256
IPv4 indirect routes • 2000
Spanning Tree Protocol (STP) instances • 128
DRAM • 4 GB
SD card capacity • 1 GB, 4 GB
Physical configurations
Dimensions (H x W x D) • 12.70 x 6.48 x 11.00 cm
Weight • 0.73 kg
Mounting • DIN Rail
Power specifications
Input Voltage Range • 12V to 48V nominal
• 9.6V to 60V absolute
Max Current during normal operation • 1.6 A with 12V input
• 0.8 A with 24V input
• 0.4 A with 48V input
Inrush Current • 10 A for 7 ms with 12V input
• 6 A for 6 ms with 24V input
• 6 A for 6 ms with 48V input
Power consumption • 14W

IE-3100-4T2S-E : Catalyst IE3100 w/4 Ports GE Copper and 2 GE SFP uplinks, NE

Data sheet Cisco Catalyst IE3100 Rugged Series
