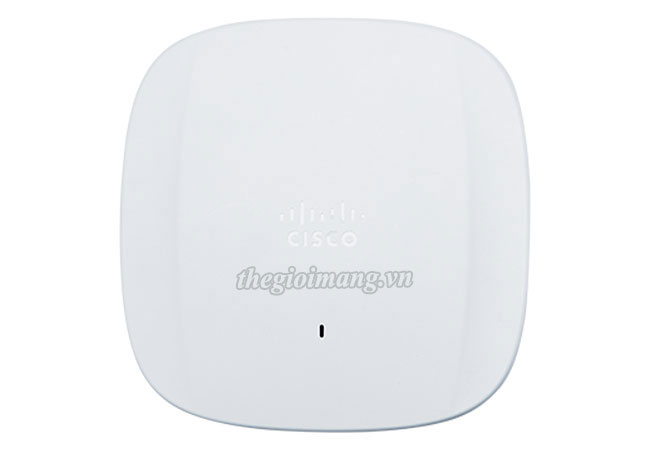

CW9166I-ROW - Cisco Catalyst CW9166I Wi-Fi 6E Access Point :
Thiết bị Wi-Fi 6E Cisco Catalyst CW9166I Indoor Access Point with internal antennas
Model | CW9166I-ROW | |||||||||||||||||||||||||||||||||||||||||||||
Software | ● Cisco IOS ® XE Software Release 17.9.1 or later | |||||||||||||||||||||||||||||||||||||||||||||
Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) | |||||||||||||||||||||||||||||||||||||||||||||
802.11n version 2.0 (and related) capabilities | ● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g ● 20- and 40-MHz channels ● PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
|||||||||||||||||||||||||||||||||||||||||||||
802.11ac | ● 4x4 downlink MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.4 Gbps (Dual 4x4 80+80 MHz on 5-GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● Wi-Fi Protected Access (WPA) 3 support |
|||||||||||||||||||||||||||||||||||||||||||||
802.11ax | ● 1024 QAM ● 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 GHz, 5 GHz and 6 GHz) ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels (6-GHz) ● 20-, 40-, 80-, and 80+80-MHz channels (5-GHz) ● 20-MHz channels (2.4-GHz) ● PHY data rates up to 7.78 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
|||||||||||||||||||||||||||||||||||||||||||||
Integrated antenna | ● 2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz (XOR): Peak gain 5 dBi, internal antenna, omnidirectional in azimuth ● 6 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
|||||||||||||||||||||||||||||||||||||||||||||
Interfaces | ● Catalyst 9166 Series: 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45) ● Management console port (RJ-45) ● USB 2.0 at 4.5W |
|||||||||||||||||||||||||||||||||||||||||||||
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors | |||||||||||||||||||||||||||||||||||||||||||||
Dimensions (W x L x H) | ● Access point (without mounting brackets): 241.3 x 241.3 x 56.9 mm) | |||||||||||||||||||||||||||||||||||||||||||||
Weight | ● 1.60 kg | |||||||||||||||||||||||||||||||||||||||||||||
Input power requirements | ● 802.3bt, Cisco Universal PoE (Cisco UPOE ®), 802.3at Power over Ethernet Plus (PoE+) ● Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 ● 802.3af PoE (only for configuration staging, all radios off) ● DC power input (54V)
|
|||||||||||||||||||||||||||||||||||||||||||||
Environmental | ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25?C (77°F) at 15,000 ft (4600 m) ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40°C (104°F) at 9843 ft (3000 m) |
|||||||||||||||||||||||||||||||||||||||||||||
System memory | ● 2048 MB DRAM ● 1024 MB flash |
|||||||||||||||||||||||||||||||||||||||||||||
Available transmit power settings |
|
|||||||||||||||||||||||||||||||||||||||||||||
Certifications | ● Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security ● Bluetooth SIG: Bluetooth Low Energy |
CW9166I-ROW: Cisco Catalyst 9166 Series
C9136I-ROW - Cisco Catalyst 9136I Access Point: Indoor environments,...
Liên hệ để có giá tốt
CW9162I-ROW - Cisco Catalyst CW9162I Wi-Fi 6E Access Point...
Liên hệ để có giá tốt

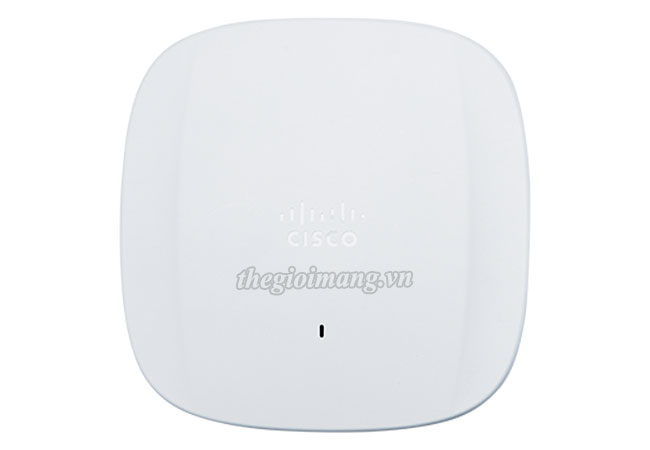

CW9164I-ROW - Cisco Catalyst CW9164I Wi-Fi 6E Access Point...
