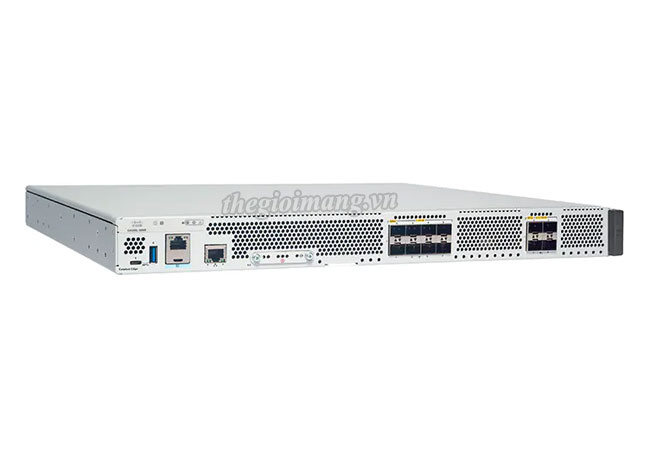

Thiết bị định tuyến Router Cisco C8500L-8S4X
| Model | C8500L-8S4X |
| Port density | |
| Max 1GE ports | 12 |
| Max 10GE ports | 4 |
| Max 40GE ports | 0 |
| Max 100GE ports | 0 |
| Cisco controller mode (SD-WAN) performance specifications | |
| SD-WAN IPsec Throughput (1400Bytes, clear text) | Up to 19Gbps |
| SD-WAN IPsec Throughput (IMIX*, clear text**) | Up to 8.6Gbps |
| SD-WAN Overlay Tunnels scale | 8000 |
| Cisco autonomous mode (non SD-WAN) performance specifications | |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 20 Gbps |
| IPsec Throughput (1400Bytes, clear text**) | Up to 19 Gbps |
| Number of IPsec SVTI Tunnels | 4000 |
| Cisco autonomous mode (non SD-WAN) system scalability | |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 50K |
| Number of IPv4 Routes | 3.5M w/ default 16GB |
| Number of IPv6 Routes | 2.2M w/ default 16GB |
| Number of Queues | 16K |
| Number of NAT Sessions | 2M |
| Number of Firewall Sessions | 2M |
| Number of VRFs | 8000 |
| Mechanical specifications | |
| Dimensions (H x W x D) | 1.73 x 17.50 in x 16.25 in |
| Rack Units (RU) | 1RU |
| Chassis weight with 2x AC power supplies and fan tray | 17 lbs |
| Input voltage | AC: 100 to 240 VAC DC: -40 to -60 VDC HVAC: 100 to 277 VAC HVDC: 240 to 380 VDC |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 150°F (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 10 to 85% Ambient (noncondensing) nonoperating and storage: 5 to 95% |
| NEBS criteria levels | GR-1089 and GR-63 |
| Altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Mean Time Between Failures (MTBF) | 240,200 hours |
