Thiết bị định tuyến Router Cisco C8300-1N1S-6T
| Model | C8300-1N1S-6T |
| Platform specifications | |
| 10G port density | |
| 1G port density | 6 |
| Slots | 1 SM, 1 NIM, 1 PIM |
| Memory (DRAM) default | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| Cisco controller mode (SD-WAN) performance specifications | |
| SD-WAN IPsec throughput (1400 bytes, clear text) | Up to 1.9 Gbps |
| SD-WAN IPsec throughput (IMIX,* clear text**) | 1.75 Gbps |
| SD-WAN overlay tunnels scale | 6000 |
| Cisco autonomous mode (non SD-WAN) performance specifications | |
| IPv4 forwarding throughput (1400 bytes) | Up to 19.7 Gbps |
| IPsec throughput (1400 bytes, clear text**) | Up to 1.9 Gbps |
| Number of IPsec Static Virtual Tunnel Interface (SVTI) tunnels | 4000 |
| Cisco autonomous mode (non SD-WAN) system scalability | |
| Number of Access Control Lists (ACLs) per system | 4000 |
| Number of IPv4 Access Control Entries (ACEs) per system | 72,000 |
| Number of IPv4 routes | 1.6M with default 8 GB, up to 4M with 32 GB |
| Number of IPv6 routes | 1.5M with default 8 GB, up to 4M with 32 GB |
| Number of queues | 16,000 |
| Number of Network Address Translation (NAT) sessions | 1.2M with default 8 GB, up to 2M with 32 GB |
| Number of firewall sessions | 512,000 |
| Number of Virtual Route Forwarding (VRF) instances | 4000 |
| Mechanical specifications | |
| Dimensions (H x W x D) | 1.73 x 17.50 x 16.25 in (4.39 x 44.45 x 41.27 cm) |
| Rack Units (RU) | 1RU |
| Chassis weight with 2 AC power supplies and fan tray | 20 lb (9.1 kg) |
| Input voltage | AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -40° to 150°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 85% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) | 536,060 hours |

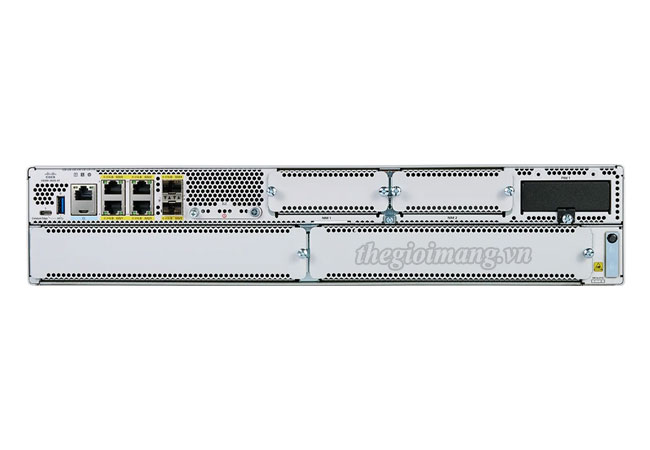

C8300-1N1S-6T : Cisco Catalyst C8300-1N1S-6T Router
