| Đặc tính kỹ thuật AVer TR313V2 - Thiết bị hội nghị Camera PTZ theo dõi tự động AI |
Camera
- Image Sensor: 1/2.8” 4K Exmor CMOS
- Effective Picture Elements: 8 Megapixels
- Output Resolutions: 4K/30, 4K/ 29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
- S/N Ratio: ≥ 50 dB
- Gain: Auto, Manual
- TV Lines: 1400 (Center/Wide)
- Shutter Speed: 1/1 to 1/32,000 sec
- Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance: Auto, Manual, ATW, One Push
- Optical Zoom: 12X
- Digital Zoom: 12X
- Total Zoom: 144X
- Viewing Angles
- DFOV: 78° (Wide) to 7° (Tele)
- HFOV: 70° (Wide) to 6° (Tele)
- VFOV: 42° (Wide) to 3° (Tele)
- Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
- Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
- Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
- Pan / Tilt Angles: Pan : ±170°, Tilt : +90° / -30°
- Pan / Tilt Speed (Manual): Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
- Preset Speed: Pan : 200° / sec, Tilt : 200° / sec
- Preset Positions: 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control - Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
- Camera Control - Protocols : VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
- Image Processing : Noise Reduction (2D / 3D), Flip, Mirror
- Power Frequencies: 50 Hz, 60 Hz
|
Tổng quan
- Power Requirement: AC 100 - 240V to DC 12V/5A
- Power Consumption: 19W
- PoE: PoE+
- Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
- Net Weight: 2.0 (±0.1) kg
- Application: Indoor
- Tally Lamp: Yes
- Security: Kensington Slot
- Remote Control: Infrared
- Operating Conditions:
- Temperature : 0 °C to +40 °C
- Humidity : 20% to 80%
- Storage Conditions:
- Temperature : -20 °C to +60 °C
- Humidity: 20% to 95%
|
IP Streaming
- Resolution: 4K 30fps
- Network Video Compress Formats: H.264, H.265, MJPEG
- Maximum Frame Rate: 4K 30fps
- Bit-Rate Control Modes: VBR, CBR (selectable)
- Range of Bit-Rate Setting: 512 Kbps to 32 Mbps
- Network Interface: 10 / 100 / 1000 Base-T
- Multi-Stream Capability: 2 (RTSP / Web Page), 4K 30fps (max.)
- Network Protocols: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
- NDI®|HX Capability: License Upgrade
|
AI Auto Tracking Functions
- Tracking Modes: Presenter Mode, Zone Mode, Hybrid Mode
|
USB
- Connector: USB 3.0 Type B
- Video Formats: MJPEG, YUY2
- Maximum Video Resolution: 2160p
- USB Video Class (UVC): UVC 1.1
- USB Audio Class (UAC): UAC 1.0
|
Privacy Protection Mechanisms
- Protection Mode: Sleep Mode
|
Audio
- Channel: 2ch Stereo
- Codec: AAC-LC, PCM
|
Web UI
- Live Video Preview: Yes
- Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image Adjustment: Exposure, White Balance, Picture
- Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
|

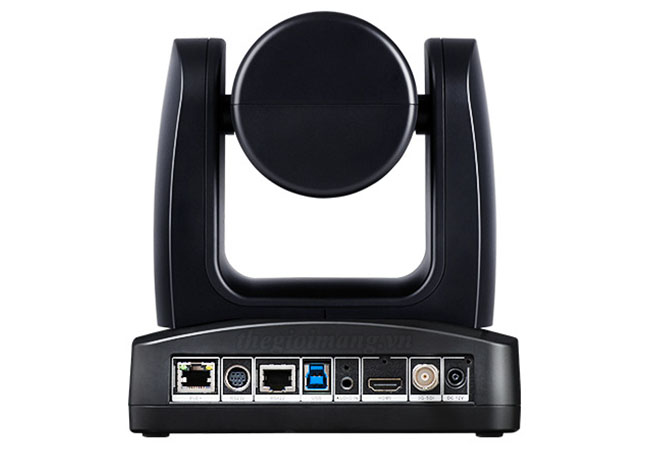

Interface
- Video Outputs: 3G-SDI, HDMI, IP, USB Type B
- Audio Outputs: 3G-SDI, HDMI, IP, USB Type B
- Audio Inputs: Mic in, Line in
|
Các công cụ phần mềm
- IP Search and Configuration Tool: Support Windows ® 7 or later
- PTZ Management: Support Windows ® 7 or later
- PTZ Control Panel: Supports iOS & iPadOS® 9 or later
- PTZ Link: Supports Windows ® 7 or later, macOS® 10.14 or later
- OBS Plugin for PTZ Cameras: Supports Windows ® 8 or later, macOS® High Sierra v10.13 or later
- CaptureShare: Supports Windows ® 7 or later, macOS® 10.14 or later
|
Bảo hành
- Camera: 3+2 năm
- Phụ kiện: 1 năm
|
| Thành phần đóng gói : Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4'-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4) |
| Phụ kiện tùy chọn thêm : AVer CL01 PTZ Camera Controller, L-Type Wall Mount |
