Đặc tính kỹ thuật AVer PTZ330UV2 - Thiết bị hội nghị Camera PTZ
Ghi lại và phát sóng trực tiếp từng khoảnh khắc thú vị |
Camera
- Image Sensor: 1/2.8” 4K Exmor CMOS
- Effective Picture Elements: 8 Megapixels
- Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
- S/N Ratio: ≥ 50 dB
- Gain: Auto, Manual
- TV Lines: 1400 (Center/Wide)
- Shutter Speed: 1/1 to 1/32,000 sec
- Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance: Auto, Manual, ATW, One Push
- Optical Zoom: 30X
- Digital Zoom: 1X
- Total Zoom: 30X
- Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)
- Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
- Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance:
- 0.1 m (Wide)
- 1.2 m (Tele)
- Pan / Tilt Angles:
- Pan : ±170°
- Tilt : +90° / -30°
- Pan / Tilt Speed (Manual):
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
- Preset Speed:
- Pan : 200° / sec
- Tilt : 200° / sec
- Preset Positions:
- 10 (IR)
- 256 (RS-232, RS-422, IP)
- Camera Control - Interfaces:
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
- Camera Control - Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
- Power Frequencies: 50 Hz, 60 Hz
|
AI Function
|
Audio
- Channels: 2ch Stereo
- Codecs: AAC-LC
|

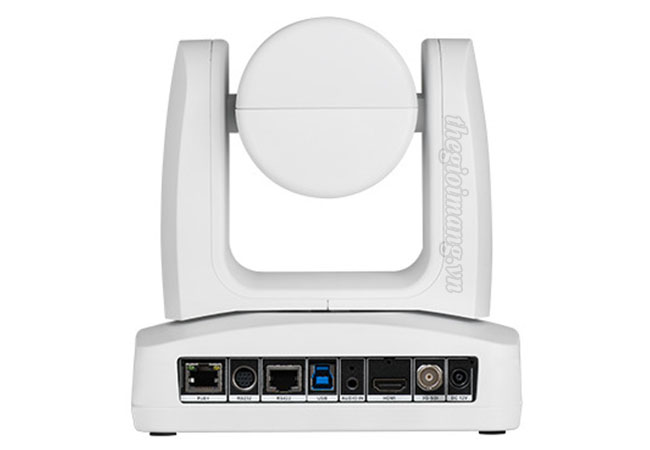

Interface
- Video Outputs: 3G-SDI, HDMI, IP, USB
- Audio Outputs: 3G-SDI, HDMI, IP, USB
- Audio Inputs: MIC in, Line in
|
General
- Power Requirement: AC 100 - 240V to DC 12V/2A
- Power Consumption: 19W
- PoE: PoE+
- Net Weight: 2.0 (±0.1) kg
- Tally Lamp: Yes
- Remote Control: Infrared
- Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
- Application: Indoor
- Security: Kensington Slot
- Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
|
IP Streaming
- Resolution: 4K 60fps
- Maximum Frame Rate: 4K 60fps
- Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
- Multi-Stream Capability:
- 4
- 4K 60fps: RTSP, HDMI & USB
- 1080p 60fps: 3G-SDI
- Network Video Compress Formats: H.264, H.265, MJPEG
- Bit-Rate Control Modes: VBR, CBR (selectable)
- Network Interface: 10 / 100 / 1000 Base-T
- Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
- NDI®|HX3: N/A
- NDI® Genlock: N/A
|
USB
- Connector: USB 3.1
- Video Formats: MJPEG, YUY2
- Maximum Video Resolution: 2160p
- USB Video Class (UVC): UVC 1.1
- USB Audio Class (UAC): UAC 1.0
|
Web UI
- Live Video Preview: Yes
- Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image Adjustment: Exposure, White Balance, Picture
- Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
|
Software Tools
- IP Search and Configuration Tool: Support Windows® 7 or later
- PTZ Management: Support Windows® 7 or later
- PTZ Control Panel: Supports iOS & iPadOS® 11 or later
- PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
- OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
- CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later
|
Bảo hành
- Camera: 3 năm
- Phụ kiện: 1 năm
|
Thành phần đóng gói
- Camera, Giấy hướng dẫn khoan, Giá treo trần (x2), HDSD, Tấm cố định cáp, Ốc vít M2 x 4 mm (x3), Power Adapter & Power Cord, Ốc vít 1/4”-20 L=6.5 mm (x2), Remote điều khiển, Ốc vít M3 x 6 mm (x3), Cáp DIN 8 to D-Sub 9, Cáp RS-232 In/Out Y, Cable Ties (x4)
|
Phụ kiện tùy chọn
- Bàn điều khiển AVer CL01 PTZ Camera Controller
- Giá treo tường chữ-L
|
