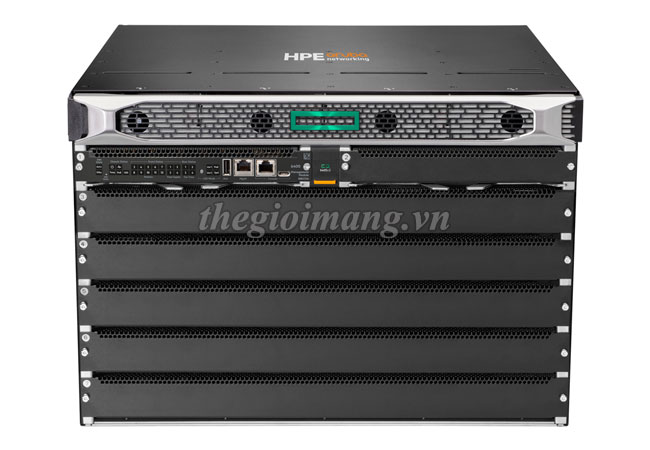

R0X26C - Bộ chuyển mạch HPE Aruba Networking 6405 v2
HPE Aruba Networking 6405 v2 (R0X26C) là thiết bị chuyển mạch dạng mô-đun hiện đại, linh hoạt và thông minh. HPE Aruba Networking Virtual Switching Extension (VSX) cho phép khả năng sẵn sàng cao và quản lý đơn giản. Cung cấp các tùy chọn kết nối multi-gigabit HPE Smart Rate cho các AP tốc độ cao và thiết bị IoT bằng cách cung cấp kết nối nhanh và PoE công suất cao. Hỗ trợ giao diện tốc cao bao gồm các cổng 1GbE, 10GbE, 25GbE, 40GbE, 50GbE và 100GbE.
Đặc điểm nổi bật của dòng HPE Aruba Networking CX 6400
Thông số kỹ thuật
| Model | HPE Aruba Networking 6405 v2 Switch (R0X26C) |
| Description | • 1 x 6405 v2 Chassis (R0X24C) • 1 x Management Module (R0X31A) • 2 x Fan Trays (R0X32A) 5 open module slots • Power supply units not included; order separately • Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C, S0E48A, S1T83A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W) • 1 x RJ‑45 Console Port • 1 x USB‑C Console Port • 1 x OOBM • 1 x USB Type A Host port |
| Power supplies | • Supports four modular front serviceable power supplies with removable rear serviceable power cord inlet adapters. • Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. • Power supplies not included; order separately. |
| Fans | • Two field replaceable system fan trays |
| Physical characteristics | |
| Dimensions | • (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm |
| Configuration Weight | • 29.3 kg |
| Additional Specifications | |
| CPU | • Management Module: Quad Core Arm® Cortex™ A72 @ 1.8GHz • R0X38A‑R0X45A and R0X38B‑R0X40B Line Cards: Dual Core Arm Cortex A72 @ 1.8GHz • R0X38C‑R0X45C, S0E48A, S1T83A Line Cards: Quad Core Arm Cortex A72 @ 1.8GHz |
| Memory and Flash | • Management Module: 16GB DDR4 ECC memory: 32GB eMMC Flash memory • R0X38A‑R0X45A and R0X38B‑R0X40B Line Cards: 4GB DDR4 memory • R0X38C‑R0X45C, S0E48A, S1T83A Line Cards: 8GB DDR4 memory |
| Packet Buffer | • R0X38A‑R0X43A and R0X38B‑R0X40B Line Cards: 8MB packet buffer memory per line card • R0X38C‑R0X43C, S1T83A Line Cards: 16MB packet buffer memory per line card • R0X44A‑R0X45A, R0X44C‑R0X45C, S0E48A Line Cards: 32MB packet buffer memory per line card |
| Performance | |
| System Switching Capacity | • 14 Tbps |
| System Throughput Capacity | • 5.7 Bpps |
| Average Latency (LIFO 64 bytes packets) | • 1G: 5.32 μSec • 10G: 1.48 μSec • 25G: 2.78 μSec • 40G: 1.31 μSec • 100G: 1.42 μSec |
| Switched Virtual Interfaces (dual stack) | • 2048 |
| IPv4 Host Table (ARP) | • 49,152; Up to 163,840 for R0X44C, R0X45C, and S0E48A |
| IPv6 Host Table (ND) | • 49,152; Up to 163,840 for R0X44C, R0X45C, and S0E48A |
| IPv4 Unicast Routes | • 61,000; Up to 630,780 R0X44C, R0X45C, and S0E48A |
| IPv6 Unicast Routes | • 61,000; Up to 630,780 R0X44C, R0X45C, and S0E48A |
| IPv4 Multicast Routes | • 8192 |
| IPv6 Multicast Routes | • 8192 |
| MAC Table Capacity | • 32,768; Up to 212,992 R0X44C, R0X45C, and S0E48A |
| IGMP Groups | • 7,000 |
| MLD Groups | • 8192 |
| IPv4/IPv6/MAC ACL Entries (ingress) | • 64,000/16,384/64,000 per line card for R0X44A/R0X44C, R0X45A/R0X45C, S0E48A; • 20,480/5,120/20,480 per line card for all other line cards |
| IPv4/IPv6/MAC ACL Entries (egress) | • 20,480/5,120/20,480 per line card for R0X44A/R0X44C, R0X45A/R0X45C, S0E48A; • 8,192/2,048/8,192 per line card for all other line cards |
| VRF | • 256 |
| Environment | |
| Operating Temperature | • 32°F to 113°F (0°C to 45°C), up to 5,000 feet • 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet • 1°C de rating per 1,000 feet above 5,000 feet |
| Operating Relative Humidity | • 15% to 95% relative humidity at 113°F (45°C), non condensing |
| Non Operating | • 40°F to 158°F (' 40°C to 70°C) |
| Non Operating Storage relative humidity | • 15% to 95% relative humidity at 149°F(65°C), non condensing |
| Max Operating Altitude | • Up to 10,000 feet (3 km) |
| Max non operating Altitude | • Up to 15,000 feet (4.5 km) |
| Acoustics | • Sound power (LWAd): 6.6 Bel, Sound Pressure (LpAm, Bystander): 46.6 dB when tested with 2 x 1800W PSU (R0X35A), 2 x fan trays, 370W of PoE and traffic on all ports • Sound power (LWAd): 6.5 Bel, Sound Pressure (LpAm, Bystander): 46.3 dB when tested with 2 x 3000W PSU (R0X36A), 2 x fan trays, 370W of PoE and traffic on all ports |
| Primary Airflow | • Front to Back |
| Electrical Characteristics | |
| Frequency | • 50/60 Hz |
| 80plus.org certification | • Platinum rated for both R0X35A and R0X36A PSUs |
| AC Voltage | • R0X35A and R0X36A PSUs: 110 127 / 200 240VAC |
| Current | • R0X35A PSU: 12A @ 110 127VAC, 10A @ 200 240VAC • R0X36A PSU: 16A @ 110 240VAC |
| Power Output | • R0X35A PSU: 1800W @ 200 240VAC, 1100W @ 110 127VAC • R0X36A PSU: 3000W @ 200 240VAC, 1500W @ 110 127VAC |
Modules
| R0X31A | HPE Aruba Networking 6400 Management Module |
| R0X38B | HPE Aruba Networking 6400 48p 1GbE CLS4 PoE Mod |
| R0X38C | HPE Aruba Networking 6400 48 port 1GbE Class 4 PoE v2 Module |
| R0X39B | HPE Aruba Networking 6400 48p 1GbE CLS4 PoE 4SFP56 Mod4 |
| R0X39C | HPE Aruba Networking 6400 48 port 1GbE Class 4 PoE and 4 port SFP56 v2 Module |
| R0X40B | HPE Aruba Networking 6400 48p 1GbE CLS6 PoE 4SFP56 Mod3 |
| R0X40C | HPE Aruba Networking 6400 48 port 1GbE Class 6 PoE and 4 port SFP56 v2 Module |
| R0X41A | HPE Aruba Networking 6400 48p Smart Rate CLS6 PoE 4SFP56 Mod4 |
| R0X41C | HPE Aruba Networking 6400 48 port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4 port SFP56 v2 Module |
| R0X42A | HPE Aruba Networking 6400 24p 10GT 4SFP56 Mod1 |
| R0X42C | HPE Aruba Networking 6400 24 port 10Gbase T and 4 port SFP56 v2 Module |
| R0X43A | HPE Aruba Networking 6400 24p SFP+4SFP56 Mod1 |
| R0X43C | HPE Aruba Networking 6400 24 port SFP+ and 4 port SFP56 v2 Module |
| R0X44A | HPE Aruba Networking 6400 48p 10G/25G SFP28 Mod |
| R0X45A | HPE Aruba Networking 6400 12p 40G/100G QSFP28 Mod |
| R0X44C | HPE Aruba Networking 6400 48p 10G/25G SFP28 v2 Mod |
| R0X45C | HPE Aruba Networking 6400 12p 40G/100G QSFP28 v2 Mod |
| S0E48A | HPE Aruba Networking CX 6400 32p 25G SFP28 4p 100G QSFP28 MACsec v2 Extended Tables Module |
| S1T83A | HPE Aruba Networking CX 6400 24p Smart Rate 1G/2.5G/5G/10G Class8 PoE and 4p SFP56 v2 Module |
Power Supplies
| R0X35A | HPE Aruba Networking 6400 1800W PS w/C16 Inlet Accessory |
| R0X36A | HPE Aruba Networking 6400 3000W PS w/C20 Inlet Accessory |
R0X26C : HPE Aruba Networking 6405 v2 Switch
