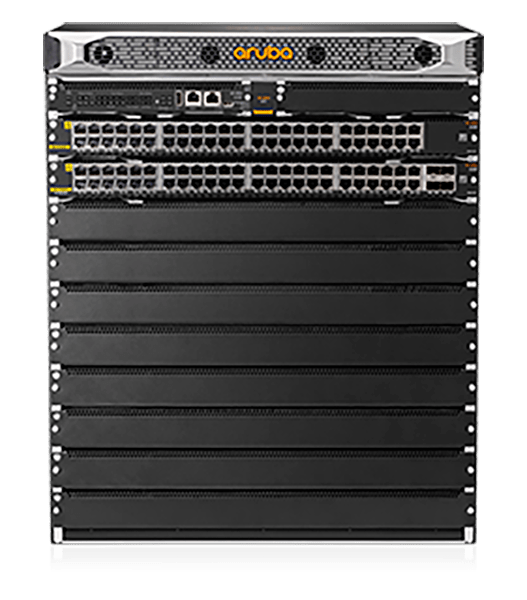

Thiết bị mạng Switch Aruba 6410 96G CLS4 PoE 4SFP56 bundle (JL741A)
| Product Name | Aruba 6410 96G CLS4 PoE 4SFP56 Switch bundle ( JL741A) |
| Description | 1x 6410 Chassis Switch (R0X25A) 1x Management Module (R0X31A) 4x Fan Trays (R0X32A) 1x R0X38B Line Card 1x R0X39B Line Card 8 open module slotsPower supply units not included; order separately 96x 10/100/1000BaseT PoE+ Ports supporting up to 30W per port 4x 1/10/25/50G SFP ports Supports any of the following line cards in the open slots:R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1x RJ‑45 Console Port 1x USB‑C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with AOS‑CX Mobile App |
| Power supplies | Supports four modular front‑serviceable power supplies with removable rear‑serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately |
| Fans | Four field replaceable system fan trays |
| Physical characteristics | |
| Dimensions | (H) 52.88 cm x(W) 44.26 cm x(D) 44.85 cm (20.8” x 17.5” x 17.7”) |
| Configuration Weight | 58.3 kg (128.8 lbs) |
| Additional Specifications | |
| CPU | Management Module: Quad Core ARM Cortex™ A72 @ 1.8GHz Line Card: Dual Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash | Management Module: 16GB DDR4 ECC memory; 32GB eMMC Flash memory Line Card: 4GB DDR4 memory |
| Packet Buffer | R0X38A‑R0X43A and R0X38B‑R0X40B Line Cards: 8MB packet buffer memory per line card R0X44A‑R0X45A Line Cards: 32MB packet buffer memory per line card |
| Performance | |
| System Switching Capacity | 28 Tbps |
| System Throughput Capacity | 20 Bpps |
| Switched Virtual Interfaces (dual stack) | 2,000 |
| IPv4 Host Table (ARP) | 28,800 |
| IPv6 Host Table (ND) | 28,800 |
| IPv4 Unicast Routes | 64,000 |
| IPv6 Unicast Routes | 64,000 |
| IPv4 Multicast Routes | 8,000 |
| IPv6 Multicast Routes | 8,000 |
| MAC Table Capacity | 29,490 |
| IGMP Groups | 8,000 |
| MLD Groups | 4,000 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5000/1250/5000 per line card |
| IPv4/IPv6/MAC ACL Entries (egress) | 2000/500/2000 per line card |
Aruba 6410 96G CLS4 PoE 4SFP56 Switch bundle (JL741A)
