R9Y03A - Aruba CX 6000 48G Class4 PoE 4SFP 740W Switch :

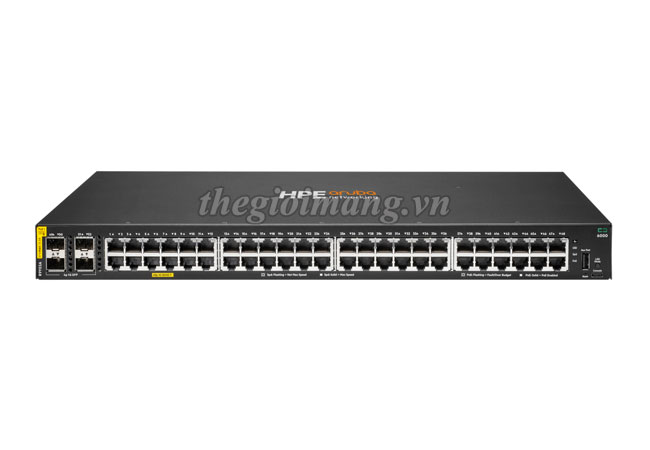

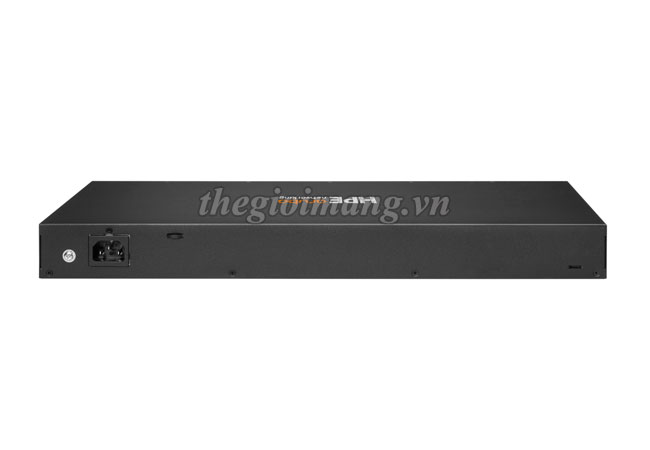

Thiết bị chuyển mạch Switch Aruba CX 6000 48G Class4 PoE 4SFP 740W (R9Y03A)
| Model | Aruba 6000 48G CL4 4SFP 740W Switch (R9Y03A) |
| Description | • 48 x 10/100/1000BASE-T Ports • 4 x 1G SFP Ports • Supports PoE Standards IEEE 802.3af, 802.3at • 1 x USB-C console port • 1 x USB Type-A Host port |
| Power supplies | • Fixed power supply • Up to 740W of Class 4 PoE Power |
| Fans | • Fixed fans |
| Physical characteristics | |
| Dimensions | • (H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm |
| Configuration Weight | • 4.7 kg |
| Additional Specifications | |
| CPU | • Dual Core ARM Cortex A9 @ 1.016 GHz |
| Memory and Flash | • 4 GB DDR3 • 16GB eMMC |
| Packet Buffer | • 1 MB |
| Performance | |
| Model Switching Capacity | • 104 Gbps |
| Model Throughput Capacity | • 77.3 Mpps |
| Average Latency (LIFO-64-bytes packets) | • 1Gbps: 1.9 µs |
| Switched Virtual Interfaces (dual stack) | • 16 |
| IPv4 Host Table (ARP) | • 1,024 |
| IPv6 Host Table (ND) | • 512 |
| IPv4 Unicast Routes | • 512 |
| IPv6 Unicast Routes | • 512 |
| MAC Table Capacity | • 8,192 |
| IGMP Groups | • 512 |
| MLD Groups | • 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | • 256 / 128 / 256 |
| Environment | |
| Operating Temperature | • 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | • 5% to 95% at 104°F (40°C) noncondensing |
| Non-Operating | • -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity |
• 5% to 90% @ 149°F (65°C) noncondensing |
| Max Operating Altitude | • 10000 feet (3 km) Max |
| Max Non-Operating Altitude | • 15000 feet (4.6 km) Max |
| Acoustic | • Sound Power, LWAd = 4.95 Bel • Sound Pressure, LpAm (Bystander) = 35.91 dB |
| Primary Airflow | • Side-to-side |
| Electrical Characteristics | |
| Frequency | • 50 / 60 Hz |
| AC Voltage | • 100-127 VAC / 200-240 VAC |
| Current | • 9.2 A / 4.9 A |
| Power Consumption (230 VAC) | • Idle: 37.5W • Max Power (w/o PoE): 49.7W • Max Power (w/ PoE): 890W |
R9Y03A : Aruba 6000 48G Class4 PoE 4SFP 740W Switch
