Zyxel NWA130BE Wi-Fi 7 Triple-Radio NebulaFlex Access Point :
Thiết bị Wi-Fi 7 Zyxel NWA130BE Indoor Access Point
| Model | NWA130BE |
| Wireless | |
| Standard | • IEEE 802.11 be/ax/ac/n/g/b/a |
| MIMO | • MU-MIMO |
| Wireless speed | • 2.4 GHz 688 Mbps • 5 GHz 4324 Mbps • 6 GHz 5764 Mbps |
| Frequency band | 2.4 GHz • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz 5 GHz • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz 6 GHz • USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz • European (ETSI): 5.925 to 6.425 Ghz |
| Bandwidth | • 20-, 40-, 80-, 160-, 240- and 320-MHz |
| Conducted typical transmit output power(limited by local regulatory requirements) | • US (2.4 GHz/5 GHz/6 GHz) 27/25/23 dBm • EU (2.4 GHz/5 GHz/6 GHz) 19/25/21 dBm |
| RF Design | |
| Antenna type | • Internal antenna |
| Antenna gain | • 2.4 GHz 3 dBi, 2x2: 2SS • 5 GHz 4 dBi, 2x2: 2SS • 6 GHz 4 dBi, 2x2: 2SS |
| Minimum receive sensitivity | • Min. Rx sensitivity up to -99 dBm |
| WLAN Feature | |
| Band steering | • Yes |
| WDS/Mesh*2 | • Yes |
| Fast roaming | • Pre-authentication, PMK caching and 802.11r/k/v |
| DCS | • Yes |
| Load balancing | • Yes |
| Advanced cellular coexistence | • Yes |
| Security | |
| Encryption | • WEP/WPA/WPA2-PSK/WPA3 |
| Authentication | • WPA/WPA2-Enterprise/EAP/IEEE 802.1X/RADIUS authentication |
| Access management | • L2-isolation/MAC filtering/Rogue AP detection |
| Networking | |
| IPv6 | • Yes |
| VLANs | • Yes |
| WMM | • Yes |
| U-APSD | • Yes |
| Management | |
| Operating mode | • Nebula managed/standalone |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations ■ IP configuration ■ IP renew ■ Device reboot ■ Device locating ■ Web GUI access ■ Firmware upgrade ■ Password configuration |
| Web UI/CLI | • Yes |
| SNMP | • Yes |
| Physical Specifications | |
| Item | • Dimensions (WxDxH)(mm) 250 x 160 x 47 • Weight (g) 808 |
| Packing | • Dimensions (WxDxH)(mm) 279.5 x 180.5 x 66 • Weight (g) 1032 |
| Included accessories | • Mount plate • Mounting screws |
| MTBF (hr) | • 698,312 |
| Physical Interfaces | |

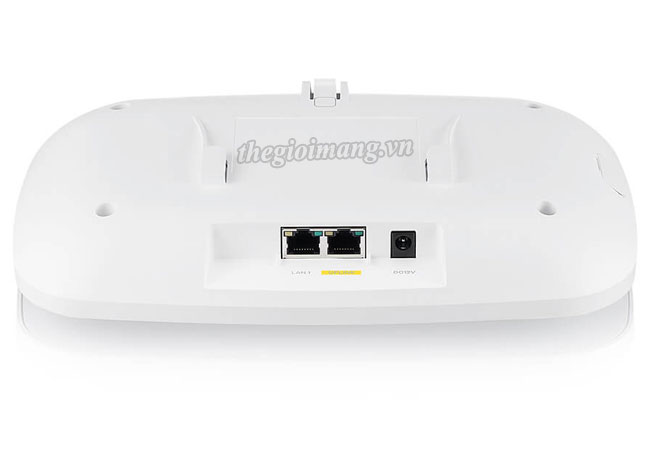

| Ethernet port | • 2 x 1/2.5 Gbps LAN |
| Power | • PoE (802.3at) power draw 24 W • DC input: 12 VDC 2 A |
| PoE modes | • IEEE 802.3af No wireless • IEEE 802.3at Unrestricted • IEEE 802.3bt Unrestricted |
| Environmental Specifications | |
| Operating | • Temperature 0°C to 50°C • Humidity 10% to 95% (non-condensing) |
| Storage | • Temperature -40°C to 70°C • Humidity 10% to 90% (non-condensing) |
