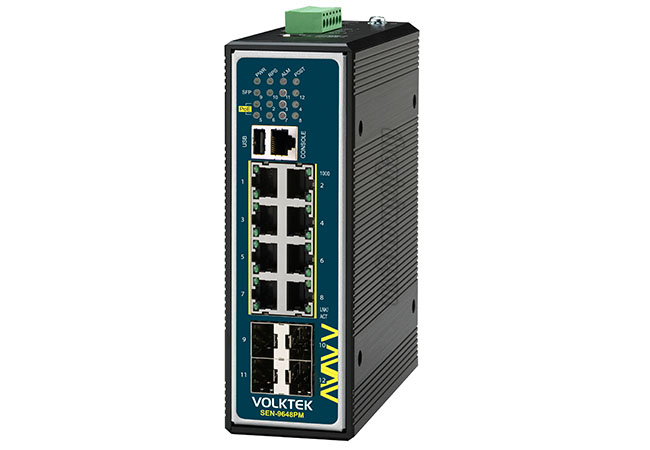

Volktek SEN-9648PM-24V : L2+ Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP Switch, -40°C~75°C (-40°F~167°F)
Thiết bị chuyển mạch Volktek SEN-9648PM-24V
| Model | SEN-9648PM-24V |
|---|---|
| Interface | |
| Ports | 8 x 10/100/1000BASE-T (PoE RJ45) 4 x GbE SFP Slots 1 x RJ45 Console Port 1 x USB Port |
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT |
| Performance | Jumbo frame Size: 10KBytes MAC Table Entries: 16K Active VLAN: 4K Switch Fabric: 24Gps L2 Forwarding Rate: 17.9Mpps |
| Power | |
| Input Voltage | Primary inputs: 24VDC Redundant inputs: 24VDC |
| Connection | Teminal Block |
| Power Consumption | System: 18W |
| PoE Power Budget: | 124W @ 24V DC 240W @ 48V DC |
| Alarm Relay | One relay output, 1A @ 24VDC |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) 70°C DNV.GL Certified |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 955 g (2.1 lbs) |
| Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) |
Data sheet Voltek SEN-9648PM-24V
| Features & Certifications | Volktek SEN-9648PM-24V Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP Switch with USB Support, , DNV GL MARINE APPROVAL |
|---|---|
| Features | |
| Management | CLI, Telnet/SSH, HTTP/HTTPs, SNMP v1/v2c/v3, RMON, SNMP Trap, MVLAN, Firmware Upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, UDLD, DHCP Client, DHCP Option 82, e-mail Alarm, Service Control, DDM |
| Reliability | STP/RSTP/MSTP, Xpress Ring, ERPS v1/v2, Dual Homing, LACP, Code Redundancy |
| VLAN | IEEE 802.1Q, GARP/GVRP, Port-based VLAN, MAC-based VLAN, IP-based VLAN, Protocol-based VLAN, QinQ |
| Traffic Control | IGMP snooping/Throttling/Proxy, MVR, QoS, Flow Control, Abnormal Traffic Detection, Rate Limit, Storm Control, Port Isolation, Loop Detection |
| Security | ACL, SSH, Port Security, Port-based 802.1x, MAC-based 802.1x, TACACS+, MAC limit, MAC Search, Refusal MAC, Static MAC, DHCP Snooping, DHCP Sever Screening, ARP Inspection, BPDU Guard/Filter, Root Guard, Management Host |
| PoE/PoE+ | Scheduling, PD Alive Check, PoE Power On/Off, Feeding Power Budget Control |
| Certifications | |
| EMI | FCC Part 15 Subpart B Class A EN 55022: class A EN 55011: 2009 class A EN 61000-6-4 |
| EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
| Marine | DNVGL-CS-0339:2016 DNVGL-RU-SHIP-Pt4Ch9:2018 IEC-60945, IACS E10 (Rev.6 2014) LR certify environmental category ENV1, ENV2, and ENV3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Optional Accessories | |
| Power Supply | SDR-480P-48: 480W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F) |
| GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500m |
| GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
| GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
