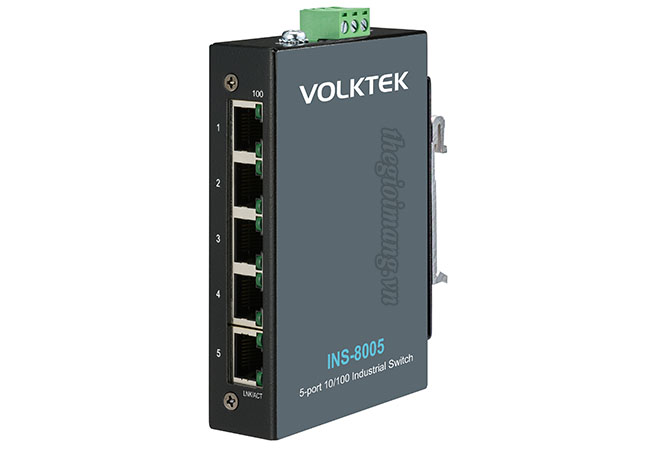

Volktek INS-8005 : Unmanaged 5 x 10/100 RJ45 Industrial Switch
Thiết bị chuyển mạch Volktek INS-8005
| Model | INS-8005 |
|---|---|
| Interface | |
| Ports | 5 x 10/100Base-TX (RJ45) |
| LED Panel | PWR, 100, LNK/ACT |
| Performance | Jumbo frame Size: 1536 Bytes MAC Table Entries: 2K Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports Switch Fabric: 1.0Gbps |
| Power | |
| Input Voltage | 18~30VDC System: 3W |
| Connection | Teminal Block |
| Power Consumption | 3W |
| Surge Protection | 6KV |
| ESD Protection | 8KV |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 145 g (0.3 lbs) |
| Dimension (WxHxD) | 23.4 x 109.2 x 73.8 mm (0.92 x 4.29 x 2.9 in) |
| Certifications | Volktek INS-8005 Unmanaged 5 x 10/100 RJ45 Industrial Switch |
|
|---|---|---|
| Standards and Certifications | ||
| CE | EMI | FCC Part 15 Subpart B class A EN 55022 EN 55011 EN 61000-6-4 |
| EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 ( ESD ): Level 3 EN 61000-4-3 ( RS ): Level 3 EN 61000-4-4 ( Burst ): Level 3 EN 61000-4-5 ( Surge ): Level 2 EN 61000-4-6 (CS ): Level 3 |
|
| Marine | DNV 2.4, IEC-60945, IACS E10 | |
| Shock Test | IEC 60068-2-27 | |
| Freefall Test | IEC 60068-2-32 | |
| Vibration | IEC 60068-2-6 | |
