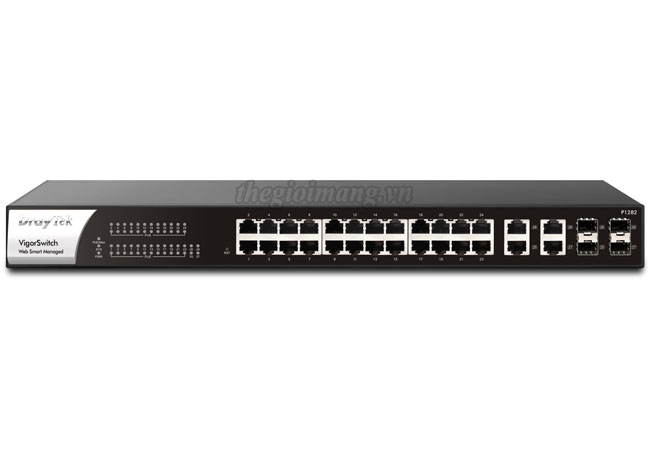

VigorSwitch P1282

DrayTek VigorSwitch P1282: 24 Port Gigabit Web Smart PoE Switch with 4 Gigabit Lan/SFP combo uplink port ● 24-port LAN Gigabit PoE+ ● 4-port combo LAN Gigabit + slot SFP quang Gigabit ● Cấu hình bằng giao diện web và dòng lệnh ● Quản lý tập trung bằng SWM / VigorConnect / VigorACS2 / Cloud DrayTek Free

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị mạng DrayTek VigorSwitch P1282

Product	VigorSwitch P1282
Physical Interfaces	24 RJ-45 Ethernet Ports – 10/100/1000Mbps Factory Reset Button 4 Selectable Ports (Nos. 25-28), use as either: ● 10/100/1000BaseT (Gigabit) Ethernet ● or SFP (1000M) Ports for Uplink / Fibre
PoE Specification	24 Power over Ethernet LAN ports - PoE PSE Mode A IEEE 802.3af PoE & 802.3at PoE+ (High Power) compliant 400 Watts Total Power Budget for PoE Up to 30 watts per port Auto Detection of Powered Device (PD) and Consumption Levels Per Port PoE Status LED Indicators Alert LED and Mail Alert for high PoE Usage Port Power Consumption Monitoring via Web Interface & CLI Circuit Protection to Prevent Power Interference between Ports PoE PD Monitoring & Maintenance Features (per port) ● Scheduling ● PoE PD Priority ● Restart PoE PD if not responding to ping ● Restart PoE IP Camera if not providing camera output
VLAN	802.1q Tag-based VLAN Port-based & MAC-based VLANs Up to 255 VLANs (out of 4096 VLAN IDs) Voice VLAN (OUI Mode) Surveillance VLAN (OUI Mode) Management VLAN Port Isolation (Protected Ports
QoS	Support 8 priority queues Port-Based rate control (Ingress & Egress) Priority queue schedule (WRR or Strict Priority) Rate Limit Class of Service ● 802.1p CoS ● DSCP ● CoS-DSCP ● IP Precedence ToS
Network Security	IP Source Guard with ARP inspection IP Conflict Prevention Storm Control (Broadcast, Unknown Multicast, Unknown Unicast) DoS Attack protection Protected Port / Port Isolation Static Port Security Loop Detection & Prevention Access Control Lists (ACL) ● Up to 512 ACL Entries ● Source and destination MAC ● VLAN ID ● IPv4/v6 address ● Protocol ● TCP/UDP port
Spanning Tree	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP)
Link Aggregation	Combine multiple ports to increase bandwidth 8 Aggregation Groups Up to 8 ports in each group LACP or Static setup Supports traffic load balancing
Networking Performance	Switching Capacity: 56Gbps Forwarding Rate: 41.7Mpps (64 bytes) Jumbo Frames up to 9KB Packet Buffer size: 4.1Mbit MAC Address Table: 8000 entries
Multicast	Up to 256 multicast groups Multicast Group Filtering / Throttling IGMP Snooping V2/V3 (BISS) IGMP V2/V3 Querier Multicast VLAN registration
ONVIF Surveillance Management	Discovery of ONVIF-compliant IP Cameras Surveillance Topology Real-Time Video Streaming ONVIF Device Maintenance ● Device Information ● Network Settings Configuration ● Time Settings ● Reboot ● Reset to Factory Default Settings ● Ping Check with Mail Alert on disconnection
Management	Central Management ● VigorACS ● VigorConnect ● Vigor Router Switch Management (requires router firmware support) IPv4 & IPv6 Dual-Stack Web User Interface Firmware Upgrade/Backup Configuration Backup/Restore Factory Default System Reboot 2-level Admin Privileges Multiple Admin Accounts Command Line Interface (CLI) via SSH/Telnet OpenVPN Client with Certificate-based auth SNMP v1, v2c, v3 (with Generic Traps) SNTP (Simple Network Time Protocol) LLDP(802.1ab) + MED
Diagnostics	Port Status & Usage display CPU/RAM Usage display MAC Address Table Device Check Syslog Mail Alert ● Port Status ● Port Speed Change ● System Restart ● Device Check ● IP Conflict ● ONVIF IP Camera Snapshot Port Mirroring Ping Diagnostics Port-based Cable Test
IPv4 Features	DHCP Client DNS Client
IPv6 Features	Auto Configuration Static IPv6 Address & Prefix Length Static IPv6 Default Gateway IPv6 Neighbour Discovery (ND) IPv6 Duplicate Address Detection ICMPv6 DHCPv6 Client
Operating Requirements	Power Input Requirements: 100-240VAC Power supply: Internal Maximum Input Power Consumption: 36 Watts Cooling: Passively cooled, no fan Operating Temperature: 0 °C to 50 °C Storage Temperature: -20 °C to 70 °C Operating Humidity: 10% to 90% RH (non-condensing)
Physical Specifications	Dimensions: 441 x 281 x 44 mm (W x D x H) Rack mountable: 1U Weight: 4.3 kg

DrayTek VigorSwitch P1282
24 Port Gigabit Web Smart PoE Switch with 4 Gigabit Lan/SFP combo uplink port

24 port LAN Gigabit PoE 802.3af/at
04 port combo Gigabit RJ45 + SFP slot Gigabit
Quy định mức độ ưu tiên cho từng port
Quy định mức công suất tối đa cho từng port (W)
Theo dõi mức tiêu thụ của từng port (W / A)
Lập lịch cấp nguồn cho từng port (tiết kiệm điện năng)
Hỗ trợ chia VLAN 802.1q, Port based VLAN, VoIP VLAN
Tính năng LACP giúp gộp băng thông các đường truyền
Tính năng Spanning Tree giúp tăng cường độ ổn định hệ thống
IGMP snooping, QoS tối ưu cho dịch vụ âm thanh và video
Tính năng Storm Control, DoS Attack Prevention
Cấu hình bằng giao diện web và dòng lệnh.
Tổng công suất nguồn cấp PoE: 340W
Quản lý tập trung bằng SWM tích hợp trên Router DrayTek / phần mềm VigorConnect (miễn phí), hoặc phần mềm VigorACS2 (phí hằng năm) hoặc cloud DrayTek Free.
