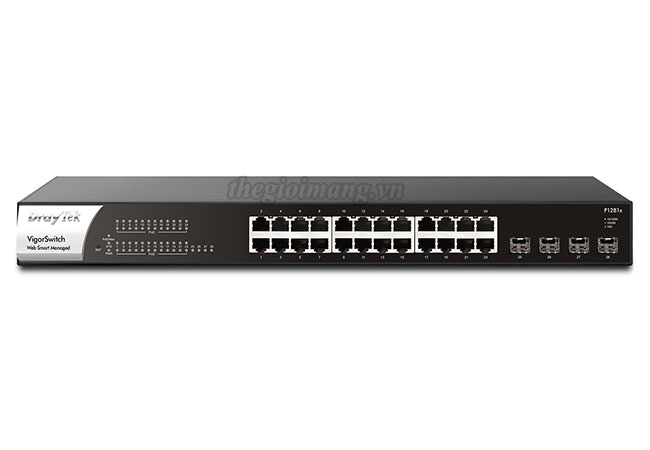

DrayTek VigorSwitch P1281x - 28-Port Web Smart Gigabit PoE+ Switch
Thiết bị chuyển mạch DrayTek VigorSwitch P1281x
| Sản phẩm | VigorSwitch P1281x |
|
Performance
|
|
| Buffer Size (Mbit) | 4.2 |
| Switching Capacity (Gbps) | 56 |
| Forwarding Rate (64 bytes)(Mpps) | 41.7 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
| Ports | |
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
| PoE | |
| PoE+(802.3af/at) Ports | 24 |
| PoE Power Budget (watts) | 140 |
| Scheduled On/Off | ✓ |
|
Spanning Tree
|
|
| STP | ✓ |
| RSTP | ✓ |
| Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | ✓ |
| VLAN | |
| Max. Number of VLAN | 512 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
| Multicast | |
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
| ONVIF Surveillance | |
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
| QoS | |
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | ✓ |
| Security | |
| IP Source Guard | ✓ |
| Traffic Control | DoS Defense, Storm Control |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
| Management | |
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| SNMP | v1, v2c, v3 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| Mail Alert |
Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | ✓ |
| VigorACS Management (Since f/w) | V2.9.2 |
|
Physical
|
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 2.5A |
| Max. Power Consumption (watts) | 200 |
| Dimension (mm) | 440 x 216 x 44 |
| Weight (kg) | 3.25 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% non-condensing |
| Storage Humidity (non-condensing) | 5 to 90% non-condensing |
Liên hệ để có giá tốt

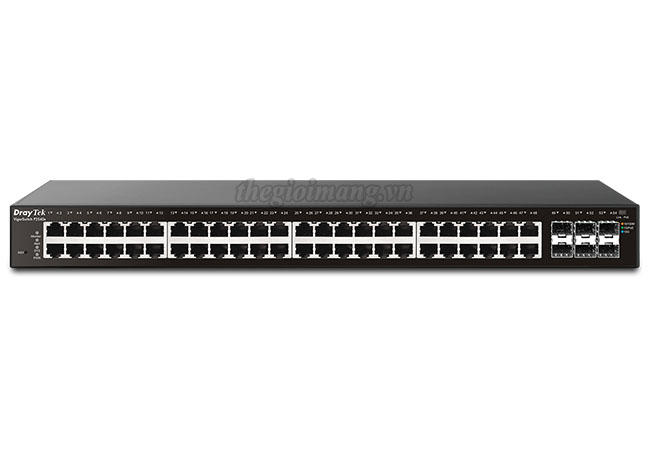

DrayTek VigorSwitch P2540xs: 54-Port Layer 2+ Managed 10G...
Liên hệ để có giá tốt

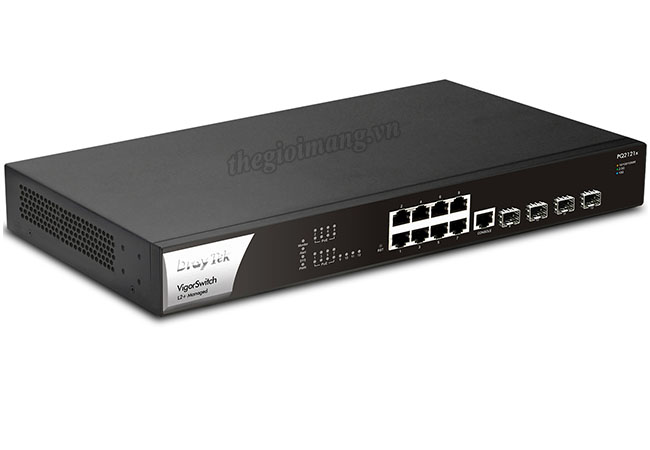

DrayTek VigorSwitch PQ2121x - 2.5GbE L2+ Managed Switch with...
