Access Point DrayTek VigorAP 810: 802.11n Wireless AP + 5-Port Switch ● Chuẩn N300: Tốc độ không dây lên đến 300 Mbps ở 2.4GHz ● Hỗ trợ tối đa lên tới: 64 user ● 5 LAN Port - 5x 10/100 Base-T RJ-45 ● Cấp phát tối đa 4 SSIDs với tính năng 802.1q VLAN.

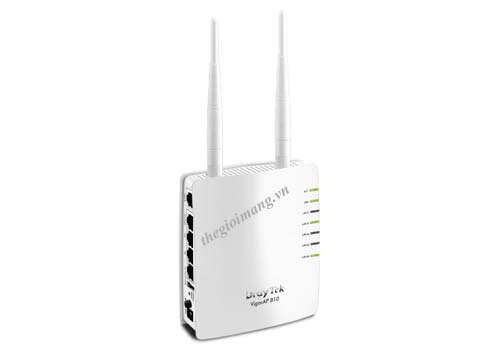

Thiết bị Access Point DrayTek VigorAP 810
| Models | VigorAP 810 |
|
Interface
|
|
| LAN Port | 5x 10/100 Base-TX LAN Switch, RJ-45 (including 1x PoE) |
| USB Port | 1x USB 2.0 |
| Antenna | 2x Detachable Single-Band Gain: 2 dBi |
| Button | 1x Factory Reset 1x Wireless On/Off/WPS 1x Power On/Off |
|
Capacity
|
|
| Peak Speed | 300 Mbps |
| Max. Number of Concurrent Active Clients | 64 |
| WLAN | |
| 2.4GHz Standard | IEEE 802.11b/g/n 2x2 MIMO |
| Operating Mode | AP, Station-Infrastructure, Bridge, Universal Repeater |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Max. Number of SSID | 4 |
| Client Number Limit | Per radio, Per SSID |
| WLAN Features | Airtime Fairness Auto Channel Selection Bandwidth Limit per Station Connection Time Control WMM IGMP Snooping |
| Security | |
| Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| MAC Address Filter | Up to 64 entries |
| Security Features | Hidden SSIDs Wireless Client Isolation Mobile Device Management |
|
Physical
|
|
| Environment | Indoor |
| Mounting | Wall Mount, Desktop |
| Power Method | DC, 802.3at PoE |
| Max. Power Consumption | 7.5 watts |
| Dimension | 112 mm x 132 mm x 43 mm |
| Weight | 220g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
Data sheet Draytek VigorAP 810
Thiết bị mạng Wifi Draytek VigorAP 810
|
Application
|
|
|---|---|
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Schedule | Auto-Reboot, Wi-Fi Up/Down |
| Application Features | Built-in RADIUS Server Static IP MAC Clone 802.1q VLAN |
| Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor |
| Notification Alert | |
| SNMP | v1, v2c, v3 |
| Management Features | Syslog Managed by VigorConnect Managed by VigorACS |
