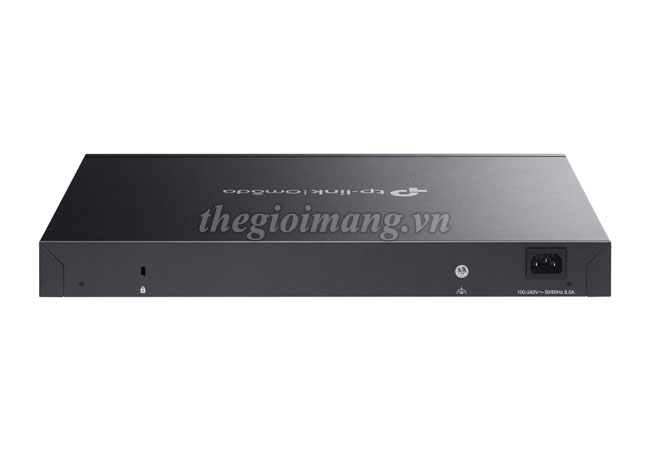

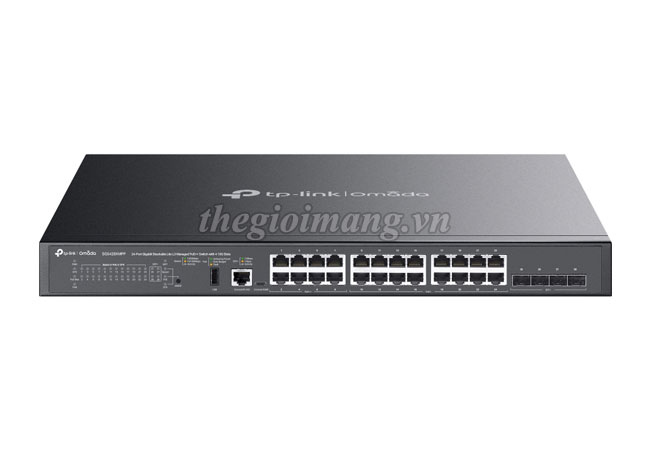

Bộ chuyển mạch Omada 24 cổng Gigabit Stackable Lite L3 TP-Link SG5428XMPP
TP-Link SG5428XMPP là thiết bị chuyển mạch Switch Lite L3 Managed PoE++ thuộc dòng Omada SDN. Với 24 cổng Gigabit PoE, 4 cổng 10G SFP+, và khả năng xếp chồng lên đến 4 thiết bị, đây là giải pháp mạnh mẽ cho hệ thống mạng doanh nghiệp, camera an ninh, và hạ tầng mạng quy mô lớn.
Thông số kỹ thuật
| Model | SG5428XMPP |
| TÍNH NĂNG PHẦN CỨNG | |
| Giao diện | • 24 × 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4 × 1/10 Gbps SFP+ Slots** • 1 × USB 2.0 Port • 1 × RJ45 Console Port • 1 × USB Type-C Console Port |
| Số lượng quạt | • 3 |
| Bộ cấp nguồn | • 100-240 V~ 50/60 Hz |
| Cổng PoE (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~24 (up to 30W per Port) • Power Budget: 500W* • Fast PoE • Perpetual PoE |
| Kích thước ( R x D x C ) | • 440 × 330 × 44 mm |
| Lắp | • Rackmountable |
| Tiêu thụ điện tối đa | • 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| Max Heat Dissipation | • 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 2099.88 BTU/hr (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| HIỆU SUẤT | |
| Switching Capacity | • 128 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) |
| Tốc độ chuyển gói | • 95.23 Mpps |
| Bảng địa chỉ MAC | • 16 K |
| Bộ nhớ đệm gói | • 12 Mbit |
| Khung Jumbo | • 9 KB |
| TÍNH NĂNG PHẦN MỀM | |
| Chất lượng dịch vụ | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 3,600 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Bảo mật | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| QUẢN LÝ | |
| Omada App | • Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | • Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | • Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| KHÁC | |
| Sản phẩm bao gồm | • SG5428XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide |
| System Requirements | • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Môi trường | • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) • Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
