Mô tả sản phẩm

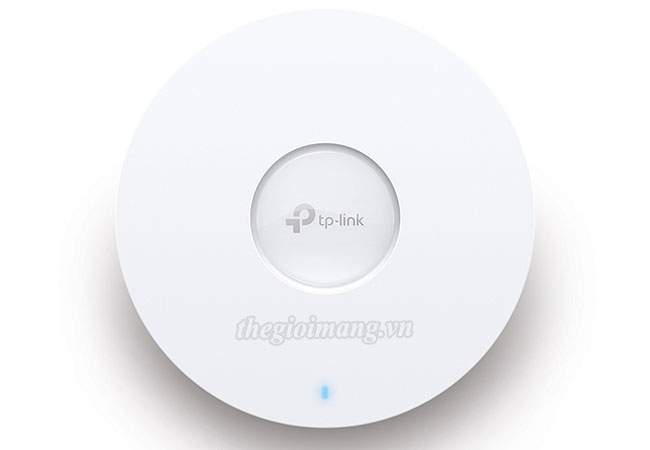

Bộ phát WiFi 6 indoor TP-Link EAP670

Sản phẩm	EAP670
TÍNH NĂNG PHẦN CỨNG
Giao diện	1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Nút	Reset
Bộ cấp nguồn	• 802.3at PoE • 12 V / 1.5 A DC (Power Adapter included)
Điện năng tiêu thụ	• EU: 18.1 W • US: 19.8 W
Kích thước ( R x D x C )	9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Ăng ten	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi
Lắp	Ceiling /Wall Mounting (Kits included)
TÍNH NĂNG WI-FI
Wireless Client Capacity	250+
Chuẩn Wi-Fi	IEEE 802.11ax/ac/n/g/b/a
Băng tần	2.4 GHz, 5 GHz
Tốc độ tín hiệu	• 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps
Tính năng Wi-Fi	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth) • Seamless Roaming • Omada Mes • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Bảo mật Wi-Fi	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Công suất truyền tải	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) • FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz)
KÍCH THƯỚC & MÔI TRƯỜNG
Chứng chỉ	CE, FCC, RoHS
Môi trường	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Sản phẩm bao gồm	• EAP670 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide

Xem thêm

Thông số kỹ thuật

TP-Link EAP670
AX5400 Ceiling Mount WiFi 6 Access Point

Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
