Mô tả sản phẩm

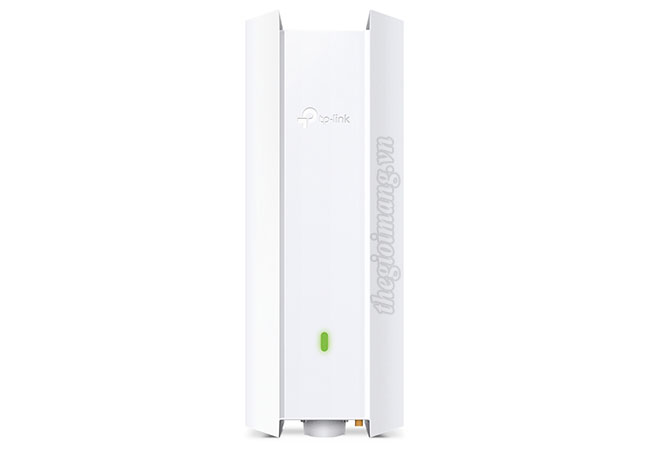

Bộ phát WiFi ngoài trời TP-Link EAP650-Outdoor

Sản phẩm	EAP650-Outdoor
TÍNH NĂNG PHẦN CỨNG
Giao diện	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Nút	Reset
Bộ cấp nguồn	• 802.3at PoE • 48V Passive PoE (PoE Adapter Included)
Điện năng tiêu thụ	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Kích thước ( R x D x C )	280.4×106.5×56.8 mm (without antenna & mounting kit)
Ăng ten	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Weatherproof Enclosure	IP67
Lắp	Pole/Wall Mounting (Kits included)
TÍNH NĂNG WI-FI
Wireless Client Capacity	250+
Chuẩn Wi-Fi	IEEE 802.11ax/ac/n/g/b/a
Băng tần	2.4 GHz, 5 GHz
Tốc độ tín hiệu	• 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Công suât truyền tải	• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Tính năng Wi-Fi	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Bảo mật Wi-Fi	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
KÍCH THƯỚC & MÔI TRƯỜNG
Chứng chỉ	CE, FCC, RoHS
Môi trường	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Sản phẩm bao gồm	• Access Point EAP650-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide

Xem thêm

Thông số kỹ thuật

TP-Link EAP650-Outdoor
AX3000 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.¹
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.²
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.³
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.³
PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
