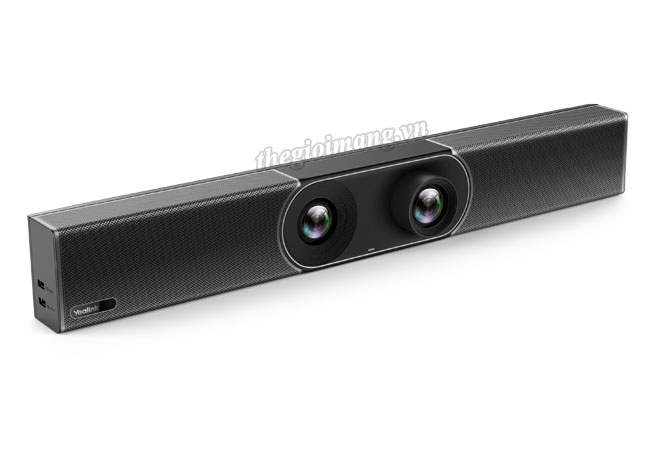

Yealink All-in-one MeetingBar A30 based on Android 9.0 OS and built-in Microsoft Teams, the all-in-one Yealink MeetingBar A30 turns your medium rooms into a dedicated Microsoft Teams Rooms system on Android. Designed in a dual-camera system with an AI-powered camera along with the 8 MEMS microphone arrays and speakers, the MeetingBar A30 delivers the enhanced smart video and HD audio perfectly.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị hội nghị Yealink MeetingBar A30

Qualcomm Snapdragon 845 chipset
ALL-IN-ONE design
Two Cameras Design
120° Super filed of view
Electric Privacy Shutter
Dual screen
Auto framing and speaker tracking
Built-in Bluetooth
Built-in dual-band Wi-Fi
Content sharing
Whiteboard
Certified by Zoom & Microsoft Teams

Data sheet Yealink MeetingBar A30 All-in-one Video Collaboration Bar

Thông số kỹ thuật Yealink MeetingBar A30 All-in-one Video Collaboration Bar

Dual Camera System

• Wide Camera:
- 8MP Camera
- Field of view: 120°
- 4x e-PTZ Camera
• Telephoto Camera:
- 8MP Camera
- Field of view: 90°
- 10x Hybrid Zoom (3.5x optical, 3x digital)
- Horizontal Rotation Angle: +25°/-25°
- Vertically Rotation Angle: +16°/-16°
• Electric Privacy Shutter
• Intelligence Features
- Auto Framing
- Speaker Tracking

Audio

• Built-in 8 MEMS microphone array
• Support extention mic
• Two Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-duplex
• Echo cancellation

Operating System

• Android 9.0

Meeting Features

• Calendar
• One-click join
• Meeting collaboration
- Content sharing
- Whiteboard
• Meeting control:
- Add participates
- Hold/Resume
- Camera On/Off
- Mute/Unmute
- Volume Up/Down
- Hang up
• Teams Edition
- Microsoft DM
- Proximity join
• Zoom Edition
- Zoom DM
- Direct sharing

Video Standard and Network Suitability

• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X
- EAP-MD5/EAP-TLS
- PEAP-MSCHAPv2
- EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate
• Simple Certificate Enrollment Protocol (SCEP)* coming soon

Connections

• 2 x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 2 x USB 2.0
• 1 x 10/100M/1000M Ethernet port
• 1 x Yealink extension port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Other Physical Features

• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
• USB Output: 5V 0.5A
• Power consumption (PSU): Idle < 13W; Normal operating: 15W; MAX: 16W
• Dimension (W.D.H): 700 mm x 98 mm x 121 mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

MeetingBar A30 Package

• Package contents:
- MeetingBar A30 endpoint
- 3m Ethernet cable
- 2 x 1.8m HDMI cable
- Mounting Bracket and Accessories
- Power adapter
- Quick Start Guide
- Controller (optional):
     CTP18 Touch Panel
     VCR20 Remote Control
- Content sharing(optional):
     VCH51 Sharing Kit (HDMI/USB-C)
     WPP20 Wireless Presentation Pod
