Name: Trendnet TPE-2840WS
Brand: Trendnet
SKU: TPE-2840WS
Rating: 5 (12 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

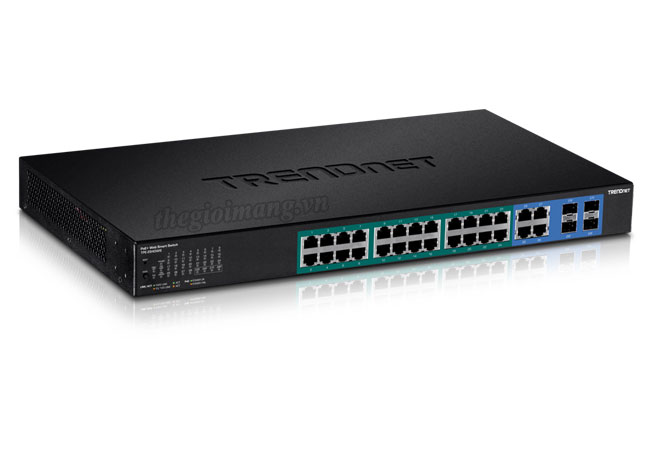

Thiết bị mạng Switch Trendnet TPE-2840WS

Model	TPE-2840WS
Device Interface	24 x Gigabit PoE+ ports 4 x Shared Gigabit ports (RJ-45/SFP) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 56Gbps RAM buffer: 4.1Mbits MAC Address Table: 8K entries Jumbo Frames: 10Kbytes HOL Blocking Prevention Forwarding rate: 41.7Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one
Encryption	802.1X Port-Based Network Access Control , RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features	PoE+ IPv6 802.3az power saving Rack mountable PoE scheduling
Power	Input: 100 - 240V AC, 50/60Hz, internal power supply Consumption: 256W (max.) Power Budget: 185W
Fan/Acoustics	Quantity: 2 Noise Level: 52 dBA (max.)
MTBF	443,825 hours
Operating Temperature	-5 – 50°C (23 - 122°F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 250 x 44mm (17.3 x 9.8 x 1.74 in.) Rack mountable 1U height
Weight	3.75kg (8.26 lbs.)
Certifications	CE FCC UL
