Name: Trendnet TL2-FG142
Brand: Trendnet
SKU: TL2-FG142
Rating: 5 (14 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

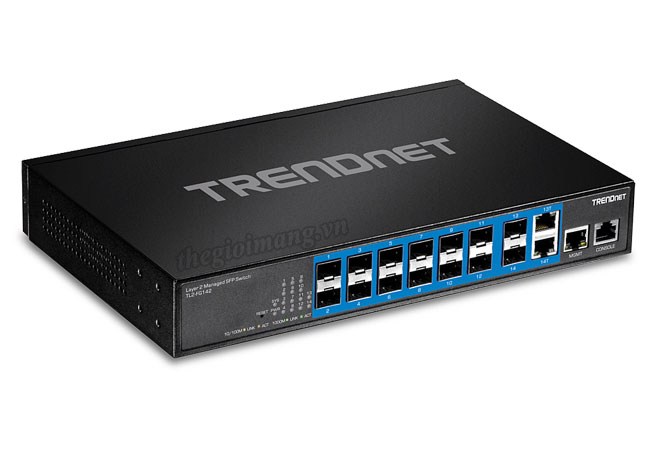

Thiết bị mạng Switch Trendnet TL2-FG142

Model	TL2-FG142
Device Interface	12 x SFP slots (100/1000Mbps) 2 x Shared Gigabit ports (RJ-45 or SFP slots) 1 x RJ-45 management port (in-band) 1 x RJ-45 console port (out-of-band) Ground point LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switching capacity: 28Gbps RAM buffer: 128MB MAC address table: 8K entries Jumbo frames: 9.6KB (configurable per port) Forwarding mode: store and forward Forwarding rate: 20.8Mpps (64-byte packet size)
Management	CLI (Console / Telnet / SSHv2) HTTP / HTTPS web based GUI SNMP v1, v2c, v3 SNMP trap RMON groups 1/2/3/9 LLDP/LLDP-MED with optional TLVs ICMPv4/ICMPv6 IPv4/IPv6 IPv6 neighbor discovery DNS proxy Network time protocol (NTP) Green Ethernet/EEE or 802.3az per port Dual image
Monitoring	CPU load IP interfaces/routing table Internal system logging External syslog Port traffic statistics QoS queue counters QCL control list Port mirror (One to one, many to one) EVC (Ethernet Virtual Connection) statistics MAC address table Digital diagnostics monitoring (DDM) for SFP modules RFC2544 support SFlow statistics
Spanning Tree	Spanning tree protocol (STP) Rapid spanning tree protocol (RSTP) Multiple spanning tree protocol (MSTP)
Link Aggregation	Static link aggregation and 802.3ad dynamic LACP (Up to 15 groups)
Quality of Service (QoS)	Class of service (CoS) Set default drop precedence (DPL), priority code point (PCP), drop eligible indicator (DEI) Differentiated Services Code Point (DSCP) classification and translation Set egress port scheduler, port shaping, port tag marking Bandwidth control per port/rate limiting Queue scheduling: strict priority (SP), deficit weighted round robin (DWRR)
Storm Control	Broadcast (Min. limit: 1pps) Multicast (Min. limit: 1pps) Unicast (Min. limit: 1pps)
VLAN	802.1Q tagged VLAN 802.1ad VLAN Q-in-Q Group VLAN Registration Protocol (GVRP) MAC-based VLAN Protocol-based VLAN VLAN ID range 1-4095 Private VLAN/port isolation Voice VLAN (16 user defined OUIs) VLAN port to group and VID translation
Carrier Ethernet / OAM	IEEE 802.1ag Connectivity Fault Management (CFM) IEEE 802.3ah Link OAM Per port per queue dual leaky bucket service policers with PCP or DSCP marking per service point Statistics and tagging options per service point Y.1731 Fault Management (AIS, RDI, LCK) Y.1731 Performance Management (LM, DM) RFC2544 support Link OAM statistics, port status, event status Link state tracking Link OAM MIB Retrieval Maintenance entity point (MEP)
Link Protection	ITU-T G.8032/Y.1344 Ethernet ring protection switching (ERPS) ITU-T G.8031/Y.1342 Ethernet linear protection switching
L3 Features	IPv4 / IPv6 static routing IPv4 interfaces: Up to 8 IPv6 interfaces: Up to 8 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 1024 entries) DHCP IPv4 server, relay, option 82 Inter-VLAN routing
Multicast	IGMP snooping v1, v2, v3 IGMP fast leave Static multicast entries MLD Snooping v1, v2 Multicast VLAN Registration (MVR) Up to 1K multicast groups
Access Control	User account control with privilege level management Access management control Port Security/MAC address learning restriction (Up to 64 entries per port) 802.1X port-based/single/multiple or MAC-based authentication RADIUS (Up to 5 servers) TACACS+ (Up to 5 servers) RADIUS assigned QoS/VLAN/Guest VLAN Local dial in user authentication DHCP IPv4 snooping Loopback detection/prevention IP Source Guard Static/dynamic ARP inspection Create ACLs based on rate limit/EVC profile
Power	Input: 100 – 240V AC, 50/60 Hz Max. Consumption: 36W
Fan/Acoustics	Fanless design
MTBF	118,034 hours
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	280 x 185 x 44.45mm (11.02 x 7.28 x 1.75 in.) Rack mountable 1U height Wall mountable
Weight	1.6 kg (3.52 lbs.)
Certifications	CE FCC UL
