Mô tả sản phẩm

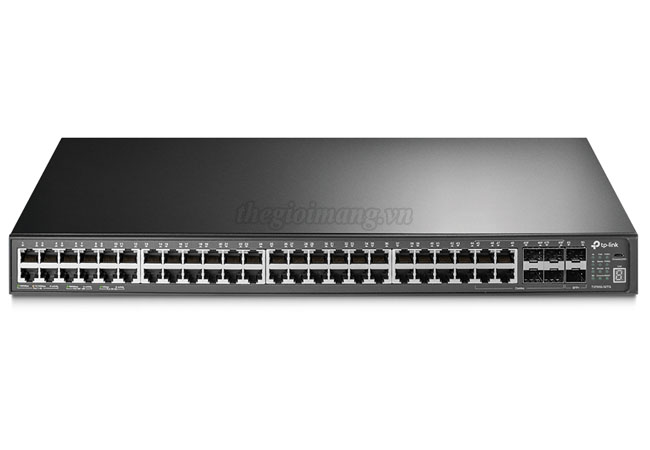

Thiết bị mạng Switch TP-Link T3700G-52TQ

Sản phẩm	T3700G-52TQ
TÍNH NĂNG PHẦN CỨNG
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo Gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional) 1 Micro-USB, 1 RJ45 Console Port 1 Management Port 1 USB Slot
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR

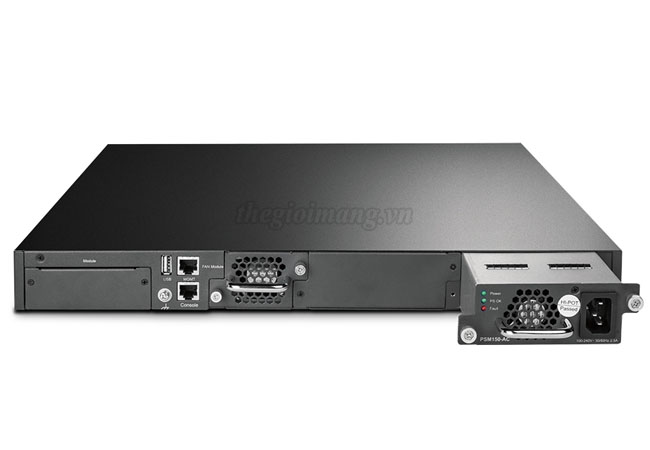

Power Supply	100~240VAC, 50/60Hz Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
Dimensions ( W x D x H )	17.3216.551.73 in. (44042044 mm)
Max Power Consumption	58.82W (220V/50Hz)
STACK VẬT LÝ
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables	TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M
Max Number of Stacking Ports Installable	2 SFP+
Stacking Speed (Per Port)	20 Gbps (Full-Duplex)
No. of Units Per Stack	8
PERFORMANCE
Switching Capacity	Up to 176Gbps for a standalone switch
Packet Forwarding Rate	Up to 130.9Mpps for a standalone switch
MAC Address Table	32K
Number of Routes	8K IPv4
Number of IP Interfaces	128 IPv4
KHÁC
Certification	CE, FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Operating Humidity: 10%~90% non-condensing

Xem thêm

Thông số kỹ thuật

T3700G-52TQ	JetStream™ 52-port Pure-Gigabit L3 Managed Switch, 48 10/100/1000Mbps RJ45 ports including 4 combo Gigabit SFP slots, 2 integrated 10G SFP+ Slots, 2 optional 10G SFP+ Slots. Abundant L3 routing protocols including Static Routing/RIP/OSPF/ECMP/VRRP, True Physical Stacking up to 8 units, Port/Tag/Voice/Protocol-Based VLAN, Q-in-Q(Double VLAN, GVRP, STP/RSTP/MSTP, PIM-SM/PIM-DM, IGMP V1/V2/V3 Snooping, MVR, 802.1P, DSCP, Rate Limiting, 802.1x, IEEE 802.3ad, L2/3/4 ACL, Port Mirroring, IP Source Guard, SSL, SSH, CLI, SNMP, RMON, IPv6 Management, Removable power unit, 1U 19-inch rack-mountable steel case
SOFTWARE Quality of Service: Support 802.1p CoS/DSCP priority, Support 8 priority queues,Queue scheduling: SP, WRR, SP+WRR, Ingress/Egress DiffServ, Port/Flow- based Rate Limiting, Voice VLAN L2 Features: IGMP Snooping V1/V2/V3, MVR, 802.3ad LACP (Up to 64 aggregation groups, 8 ports per group), Spanning Tree STP/RSTP/MSTP, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control VLAN: Supports up to 4K VLANs simultaneously, IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP Security: IP-MAC-Port-VID Binding, IEEE 802.1X, AAA, Radius/Tacacs+ Authentication and Accounting, DoS Defence,Dynamic ARP inspection (DAI), IP Source Guard, SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Access Control list, Broadcast/Multicast/Unknown-unicast Storm Control L3 Features: Wire-speed IP forwarding, Static Routing, RIP v1, v2, OSPF v2, ECMP, PIM-SM/PIM-DM/IGMP, DHCP Server/Relay, ARP Proxy, VRRP Management: Web-based GUI and CLI management, SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Snooping, DHCP Option82, CPU Monitoring, Port Mirroring, Time Setting: SNTP, Firmware Upgrade: TFTP & Web, SYSLOG & Public MIBS, Dual Image, IPv6 Management
Data sheet TP-Link T3700-52TQ
