Name: Sorotec HP2116C 1KT
Brand: Sorotec
SKU: HP2116C 1KT
Rating: 5 (21 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

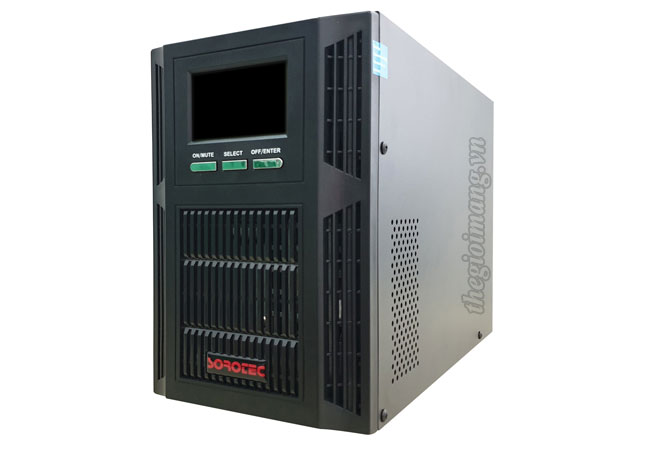

Bộ lưu điện True Online Sorotec HP2116C 1KT

Model	HP2116C 1KT
POWER
Capacity	• 1KVA/900W
Power Factor	• 0.9 PF (1.0 Option)
System Efficiency	• Battery mode 94%. ECO mode 98%.
Auto restart	• UPS auto shutdow when battery low, and auto restart when AC recovery
INPUT
Voltage range	• 220VAC (115V~300V)
Frequency	• 40~70Hz auto sensing.
Current	• 5A
Power Factor	• > 0,98
THDI	• < 10%
Phase	• Single phase with ground
OUTPUT
Voltage	• 220VAC±1%
Frequency	• 50Hz/60Hz±0.5Hz auto sensing.
Wave form	• Pure Sine Wave.
Technology	• True Online Double Conversion
Transfer Time	• 0 mili second. Bypass to Inverter and vice versa <4ms
Distortion full load	• Linear load <3%, Non-linear load < 6%
Crest Ratio	• 3:1 (max)
BATTERY
Battery type	• CSB Sealed Lead Acid Battery, design 5 years. Maintenance free.
Capacity battery	• 12V9Ah*2
Charger time	• 5 hours to 90% capacity
BACKUP TIME
25% Load	• 15 minutes
50% Load	• 8 minutes
75% Load	• 4 minutes
100% Load	• 3 minutes
Overload	• 110% warning, 130% bypass in 60 seconds
SAFETY
Certification	• CE(EN60950), IEC 61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-2 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4
EMI	• EN62040-2 Class A, EN55022 / IEC62040-2 Class B
Protection	• Anti-pulses, noise filters, low Voltage, Over voltage, Overload, Short circuit, overheating…
MAINTENCE
Bypass Maintenance	• N/A
Auto Bypass	• UPS Fault, Overload, battery low
COMMUNICATION INTERFACE
Control Panel	• On/Off, LCD Display
LCD display	• AC mode, Bypass mode, Inverter mode, Input Voltage, Output Voltage, Frequency, Load, Capacity battery…..
Smart Slot	• RS232/USB, SMNP Slot, RJ45 protec dataline…Options: WebPower, AS400 Card, USB card or WinPower CMC)
Function N+X	• N/A
Softwave	• Power Manager allows monitoring, automatic control on/off UPS and system.
ENVIRONMENT
Temperature working	• 0℃~40℃ Humidity 20%~90% non-condensing.
Noise	• 45Db
PHYSICAL
UPS WDH(mm)	• 350145220 (10.5 kg)
Package size UPS (mm)	• 430233330 (9 kg)
