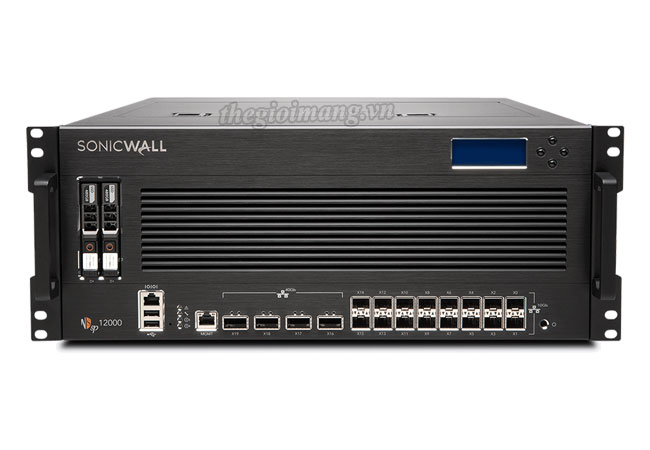

Thiết bị tường lửa Firewall SonicWall 12800
Model | NSsp 12800 |
Operating system | SonicOS 6.5.1.8 |
Security processing cores | 256 |
Interfaces | 4 x 40-GbE QSFP+, 16 x 10-GbE SFP+, 1 GbE Management, 1 Console |
Built-in storage | 2 x 480 GB |
Management | CLI, SSH, Web UI, GMS, REST APIs |
SSO users | 110000 |
Maximum access points supported | 128 |
Logging | Analyzer, Local Log, Syslog, IPFIX, NetFlow |
FIREWALL/VPN PERFORMANCE | NSsp 12800 |
Firewall inspection throughput | 120.3 Gbps |
Threat Prevention throughput | 67.5 Gbps |
Application inspection throughput | 91.0 Gbps |
IPS throughput | 73.0 Gbps |
Anti-malware inspection throughput | 67.5 Gbps |
IMIX throughput | 29.0 Gbps |
TLS/SSL inspection and decryption throughput (DPI SSL) | 17.6 Gbps |
VPN throughput | 47.0 Gbps |
Connections per second | 860,000/sec |
Maximum connections (SPI) | 80,000,000 |
Maximum connections (DPI) | 32,000,000 |
Maximum connections (DPI SSL) | 2,600,000 |
VPN | NSsp 12800 |
Site-to-site VPN tunnels | 25000 |
IPSec VPN clients (maximum) | 2,000 (10,000) |
SSL VPN NetExtender clients (max) | 2 (3,000) |
Encryption/authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
Route-based VPN | RIP, OSPF, BGP |
NETWORKING | NSsp 12800 |
IP address assignment | Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay |
NAT modes | 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode |
VLAN interfaces | 512 |
Routing protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p |
Authentication | LDAP, XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
VoIP | Full H323-v1-5, SIP |
Standards | TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
Certifications (in progress) | ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC |
High availability | Active/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering |
HARDWARE | NSsp 12800 |
Power supply | Dual, Redundant, 1,200W |
Fans | Dual, Removable |
Input power | 100-240 VAC, 50-60 Hz |
Maximum power consumption (W) | 965 |
MTBF @25ºC in hours | 91,118 |
MTBF @25ºC in years | 10.4 |
Form factor | 4U Rack Mountable |
Dimensions | 24.0 x 16.9 x 7.1 in (61 x 43 x 18 cm) |
Weight | 67.2 lb (30.5 kg) |
WEEE weight | 75.6 lb (34.3 kg) |
Shipping weight | 91.1 lb (41.3 kg) |
Major regulatory | FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL/cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
Environment (Operating/Storage) | 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C) |
Humidity | 10-95% non-condensing |
