Máy chủ Server DELL EMC PowerEdge R740XD - 2.5 INCH
Chassis
|
2U Dell PowerEdge R740XD 24x2.5" - 2 x 750W Power Supply 24x HDD HotSwap |
Mainboard
|
Dell PowerEdge R740XD |
Storage controllers
|
DELL PERC H730P Raid Controller Mini Mono 2GB |
Processor |
1 x Intel® Xeon® Silver 4210 Processor 13.75M Cache, 2.20 GHz |
Memory |
2 x Bộ Nhớ RAM DDR4 16GB PC4-21300 2666MHz ECC Registered DIMMs |
Drive bays |
2 x Ổ Cứng HDD Dell 1.2TB 2.5inch SAS 12Gb/s 10K RPM |
Khác |
1 x Heatsink Dell PowerEdge R740 |
Đây chỉ là cấu hình tiêu chuấn tham khảo. Liên hệ để được tư vấn theo yêu cầu.
Data sheet Dell EMC PowerEdge R740xd
Thông số kỹ thuật của Máy chủ Dell EMC PowerEdge R740xd:
Form factor: 2U Rackmount
Processors: up to 2 Intel Scalable CPUs or up to 28 cores
Memory: 24x DDR4 RDIMM, LR-DIMM (3TB max)
NVDIMM support: up to 12 or 192GB
Drive Bays:

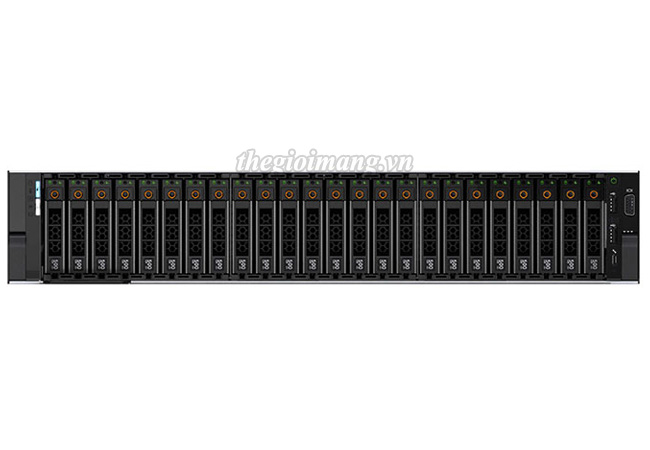

Front bays:
Up to 24 x 2.5” SAS/SSD/NVMe, max 153TB
Up to 12 x 3.5” SAS, max 120TB
Mid bay:
Up to 4 x 3.5” drives, max 40TB
Up to 4 x 2.5” SAS/SSD/NVMe, max 25TB

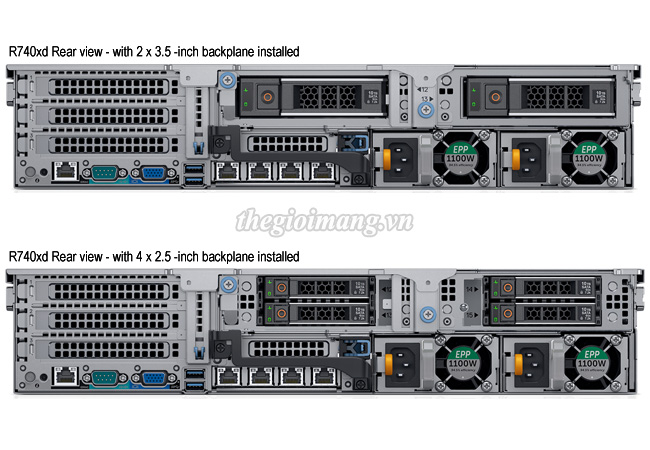

Rear bays:
Up to 4 x 2.5” max 25TB
Up to 2 x 3.5” max 20TB
Storage Controllers
Internal controllers: PERC H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
Ports
Network daughter card options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
Video card:
VGA
Up to 8 x Gen3 slots, Up to 4 x16
GPU Options:
Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000.
AMD S7150, S7150X2
Supported OS
Canonical Ubuntu LTS
Citrix XenServer
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Power
Titanium 750W, Platinum 495W, 750W, 1100W,
1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy
Up to 6 hot plug fans with full-redundancy, high-performance fans available
Liên hệ để có giá tốt
