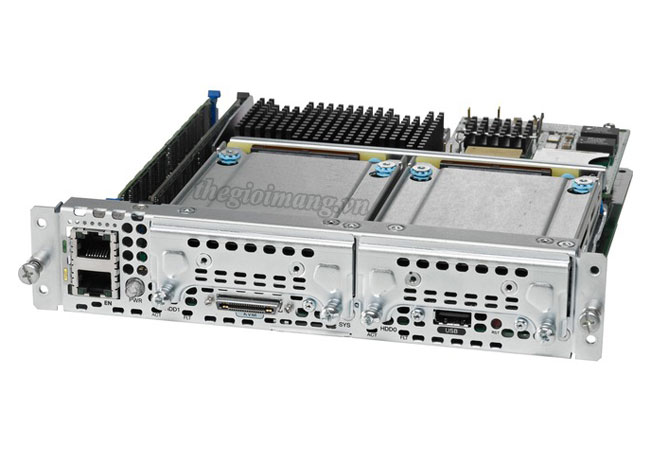

Server Cisco UCS-E160S-M3/K9

UCS-E160S-M3/K9 Cisco UCS E-Series Single-Wide Servers : ● single-wide ● Intel Broadwell 6-core CPU ● up to 64 GB RAM ● 1-2 HDD ● Tương thích với Cisco 4331 ISR, 4351 ISR, 4451 ISR, 4461 ISR và Cisco Catalyst 8300 Series
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Máy chủ Server Cisco UCS-E160S-M3/K9

Model UCS-E160S-M3/K9
CPU ●  Intel Xeon Broadwell DE processor D-1528 (9-MB cache, 1.90 GHz, and 6 cores)
DRAM ●  8 - 64 GB
●  2 DIMM slots, each with 8 GB, 16 GB or 32 GB VLP DDR4 RAM
Hard-Disk Drive (HDD/SSD) ●  2 SFF slots; up to 4 TB each (SSD) or 2 TB each (HDD); Refer to the ordering and compatibility guide for more information
RAID options ●  Hardware RAID 0 and 1
●  LSI MegaRAID SAS 3108 controller
●  Queue depth: 928
●  Stripe size: 64K
●  PCIe passthrough
Power Loss Protection for Cache Back Up ●  No
Network Interface Cards (NICs) ●  2 internal Gigabit Ethernet ports (Broadcom 5719)
●  2 external 10 Gigabit Ethernet ports (1000/10000) (Integrated within Intel Xeon-D CPU)
Cisco IMC ●  Integrated Emulex Pilot-3 BMC
●  IPMI 2.0 compliant for management and control
●  Command-Line Interface (CLI) and WebGUI management tool for automated, lights-out management
●  Virtual KVM
Integrated eMMC storage ●  8-GB partition for Cisco IMC
●  8-GB partition for Intel X86 host
Front-panel connectors ●  1 KVM console connector (supplies 1 VGA, 1 serial and 1 USB 2.0 connector)
●  1 onboard USB 3.0 port
Physical dimensions (H x W x D) ●  1.58 x 7.44 x 7.5 in. (4 x 18.9 x 19.1 cm)
Maximum weight ●  2.5 lb (1.1 kg)
Temperature: Operating ●  According to operating requirements of deployable platform: 32 to 104°F (0 to 40°C) normal
Temperature: Non-operating ●  –4 to 149°F (–20 to 65°C)
Humidity: Operating ●  According to operating requirements of deployable platform: 10 to 85% operating
Humidity: Non-operating ●  5 to 95%
Altitude: Operating ●  104°F (40°C) at sea level to 10,000 ft (0 to 3,000m); maximum ambient temperature decreases by 1°C per 300m
Altitude: Non-operating ●  15,000 ft (4600m)

UCS-E160S-M3/K9 : UCS-E, single-wide, Intel Broadwell 6-core CPU; up to 64 GB RAM, 1-2 HDD

Data sheet Cisco UCS E-Series M3 Servers
