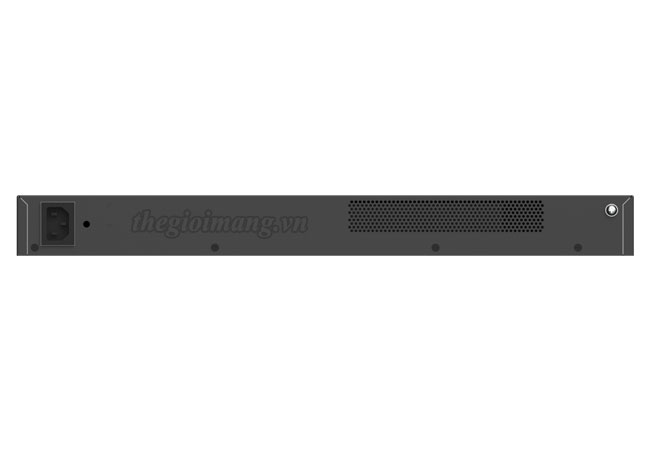

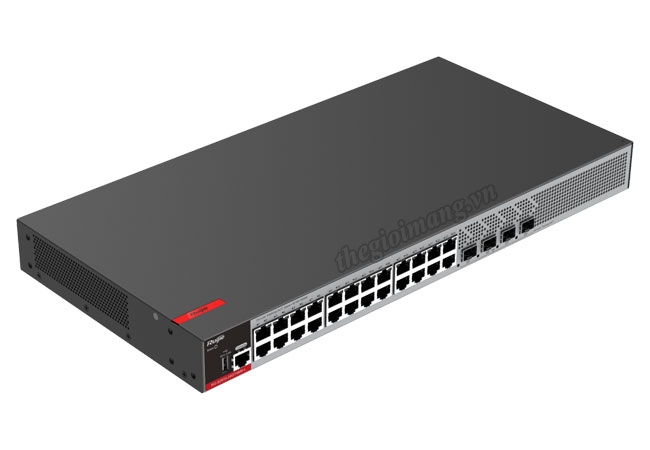

Ruijie RG-S2915-24GT4MS-L 24-Port gigabit L2+ managed switch :
Thiết bị chuyển mạch Switch Ruijie RG-S2915-24GT4MS-L
| Model | RG-S2915-24GT4MS-L |
| System Specifications | |
| Switching Capacity | • 68Gbps |
| Packet Forwarding Rate | • 51 Mpps |
| Fixed Service Ports | • 24 × 10/100/1000Base-T Ethernet ports with auto-negotiation • 4 × 2.5GE/1GE SFP ports |
| Fixed Management Ports | • 1 × RJ45 console port, 1 × USB port |
| Cable Hot Swapping | • Supported by service interfaces and power ports |
| CPU | • ARM A9 CPU, 1.2GHz |
| SDRAM | • 512MB |
| MAC Address | • 16000 |
| ARP Table | • 512 |
| Jumbo Frame | • 9126 |
| Routing Table Size (IPv4/IPv6) | • 64 |
| ACL Entries | • 500 |
| Dimensions and Weight | |
| Device Size (W × D × H) | • 440 mm × 220 mm × 43.5 mm |
| Weight | • 2.5 kg |
| Rack Size | • 1 RU |
| Installation Mode | • Mounted on a workbench/wall/in a rack (cabinet) |
| Power Supply and Consumption | |
| Number of Fixed Power Modules | • 1 |
| Maximum Power Consumption | • 15.6 W |
| Rated Input Voltage Range | • 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum Input Voltage Range | • 90 V AC to 264 V AC, 50 Hz to 60 Hz |
| PoE | • Not supported |
| Environment and Reliability | |
| Number of Fixed Fans | • 0 |
| Heat Dissipation | • Natural heat dissipation |
| Noise | • Fanless |
| Fan Speed Adjustment | • N/A |
| Operating Temperature | • 0°C to 45°C |
| Storage Temperature | • -40°C to 70°C |
| Temperature Monitoring | • Supported |
| Temperature Alarm | • Supported |
| Overtemperature Protection | • Supported |
| Operating Humidity | • 10% to 90% RH (non-condensing) |
| Storage Humidity | • 5% to 95% RH (non-condensing) |
RG-S2915-24GT4MS-L : 24 × 10/100/1000Base-T copper ports with auto-negotiation, 4 × 1GE/2.5GE SFP ports, fixed single AC power supply
Data sheet Ruijie RG-S2915-L Series Simplified Gigabit Switch
