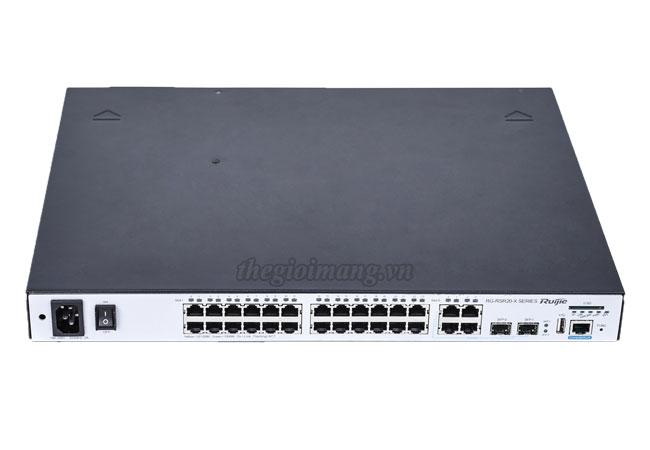

Ruijie RG-RSR20-X-28 Multi-Service Router :
Thiết bị định tuyến Router Ruijie RG-RSR20-X-28
| Model | RSR20-X-28 |
| Module Slots | • 4 HSIC slots |
| Fixed Ports | • Fixed Switch Ports: 24 1000BASE-T ports • Fixed WAN Ports: 2 1000BASE-T ports, 2 GE combo ports • 1 USB port • 1 SD card slot • 1 console/AUX port |
| Available Modules | • HSIC-2E1/CE1 • RG-PA60 |
| Flash | • 256MB |
| Memory | • 1GB |
| Packet Forwarding Rate | • 1.6Mpps |
| LAN Protocol | • 802.1x authentication, STP / RSTP / MSTP, RLDP, LLDP |
| WAN Protocol | • PPPoE, HDLC, PPP, MP |
| Routing Protocol | • Static routing, RIPv1/v2, OSPFv2/v3, BGP4/BGP4+, RIPng, IS-ISv4/v6, IGMPv1/v2/v3, IGMP proxy, PIM-DM, PIM-SM, PIM-SSM |
| MPLS | • MPLS forwarding, LDP FRR, MPLS ping, MPLS traceroute, MPLS L3 VPN, MPLS L2 VPN, MPLS QoS, MPLS over GRE |
| IP Application | • DHCP, DNS Client, NTP/SNTP, uRPF, TFTP+FTP(LM), Telnet, UDP helper, HTTP server, IPFIX |
| IPv6 | • Manual tunnel, Auto tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel, 6RD, NAT-PT, NAT64 |
| QoS | • LLQ (PQ+CBWFQ), RTPQ/LLQ, CAR, GTS, WRED, HQoS |
| Network Security | |
| AAA | • Local user, Radius, TACACS+ |
| SSH | • SSH v1.5, SSH v2.0 |
| Firewall | • Packet filtering, state detection, URL filtering |
| NAT | • Static NAT, dynamic NAT, Static NAPT, dynamic NAT, cross VPN NAT |
| GRE | • Support |
| IPIP | • Support |
| VPDN | • L2TP, PPTP, VPE |
| IPsec | • Support |
| ACL | • Standard ACL, extended ACL, time-based ACL, IPv6 ACL |
| IPsec | |
| IPsec Tunnel | • 150 |
| IPsec one-way forwarding capacity (AES256) | • Up to 193Kpps |
| High Availability | • VRRP, DLDP, BFD, GR |
| Management | • SNMP v1/v2c/v3, syslog, RMON, USB, SD |
| Dimensions (D x W x H) (mm) | • 340 × 440 × 44 |
| Rack Height | • 1U |
| Weight (Maximum) | • 7kg (with packaging) |
| MTBF | • >437,864 hours |
| Power Consumption | • <48W |
| Input Voltage | • 100VAC~240VAC |
| Input Frequency | • 50Hz to 60Hz |
| Power Redundancy | • Support |
| Temperature | • Operating temperature: 0°C to 45°C • Storage temperature: -40°C to 70°C |
| Humidity | • Operating humidity: 5% to 95% RH (non-condensing) • Storage humidity: 5% to 95% RH (non-condensing) |
