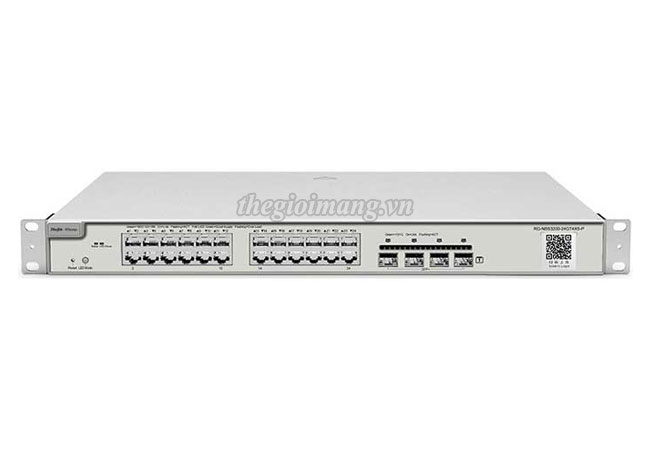

Ruijie RG-NBS3200-24GT4XS-P 24-Port Gigabit Layer 2 Cloud Managed PoE Switch :
Thiết bị chuyển mạch Switch Ruijie RG-NBS3200-24GT4XS-P
| Model | RG-NBS3200-24GT4XS-P |
| 10/100/1000Base-T ports | 24 |
| SFP ports | - |
| SFP+ ports | 4 |
| PoE/PoE+ ports | 24 |
| Max. PoE budget | 370W |
| Layer Type | Layer 2 |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.24 Mpps |
| Packet Buffer | 12 Mbit |
| MAC address table | 16000 |
| Maximum VLAN Support | 4094 |
| Dimensions (W x D x H) | 440 mmx 357.6 mm x 43.6 mm |
| Weight (With package) | 4.75 kg |
| MTBF | > 200,000 |
| Warranty | 5 Years |
| Layer 2 Features | |
| Jumbo Frame | 9216 |
| Flow Control | ✓ |
| STP (IEEE 802.1d) | ✓ |
| RSTP (IEEE 802.1w) | ✓ |
| MSTP (IEEE 802.1s) | - |
| Port Fast | ✓ |
| BPDU Guard | ✓ |
| Errdisable Recovery | ✓ |
| Max. Aggregation Group | 16 |
| Max. Member per Group | 8 |
| Unknow Unicast Storm Suppression | ✓ |
| Multicast / Broadcast Storm Suppression | ✓ |
| Many-to-One Mirroring | ✓ |
| VLAN Range | 1-4094 |
| Port-based VLAN | ✓ |
| MAC-based VLAN | ✓ |
| IP-based VLAN | ✓ |
| Voice VLAN | ✓ |
| RLDP | ✓ |
| LLDP / LLDP-MED | ✓ |
| Cable Testing | ✓ |
| IGMP Snooping v1/v2/v3 | ✓ |
| Software Features | |
| Ping | ✓ |
| Traceroute | ✓ |
| ACL Entries | 1900 |
| IP Standard ACL | ✓ |
| MAC-based Extended ACL | ✓ |
| IP-based Extended ACL | ✓ |
| Port-based Rate Limit (Ingress/Egress) | ✓ |
| SNMP v1/v2c/v3 | - |
| Web Management | ✓ |
| Management IP | 10.44.77.200 |
| HTTP/HTTPS | ✓ |
| Cloud Management | ✓ |
| SON (Self-Organizing Network) with IP | ✓ |
| Camera Recognition | ✓ |
| Loop Prevention | ✓ |
| Loop Notification | ✓ |
| PoE Usage Alarm | ✓ |
| Protection Port | ✓ |
| IP Source Guard | ✓ |
| Anti-ARP Spoofing | ✓ |
| DHCP Snooping | ✓ |
| DHCP Client | ✓ |
| Physical Features | |
| Reset Button | Front |
| Cable Hot-swappable | ✓ |
| Power Supply Slot | Single, fixed power supply |
| Power Supplies | 100 - 240V AC, 6A |
| Power Consumption | ≤ 432W |
| EEE | ✓ |
| Fan | 1 |
| Airflow | Left-to-Right |
| Fan Adaptive Speed Adjustment | ✓ |
| Acoustic Noise | < 45dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 6 kV |
| Operating Altitude (meters) | -500 to 5000 |
| Certificate | CE, RoHS |
