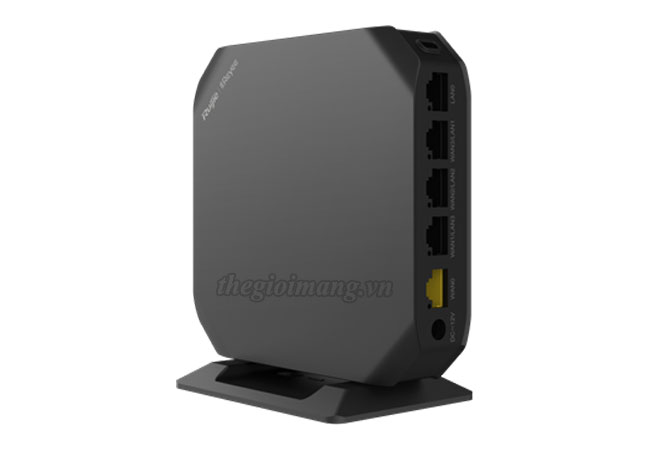

Ruijie RG-EG105GW(T)

Ruijie RG-EG105GW(T) Wi-Fi 5 1267Mbps Wireless All-in-One Business Router :

  • Fixed WAN Port : 1 × 10/100/1000 Base-T
  • Fixed LAN Port(s) : 1 × 10/100/1000 Base-T
  • LAN/WAN Switchable Port(s) : 3 × 10/100/1000 Base-T
  • Recommended Bandwidth : 600Mbps
  • Recommended Total Clients : 150
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Router Wireless Ruijie RG-EG105GW(T)

Model RG-EG105GW(T)
Wireless Basic Specification
Radio • Dual-stream Dual-band
Protocol • Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1)
• Wi-Fi 4 (IEEE 802.11n)
• 802.11a/b/g
Operating Bands • 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz
• 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz, 5.725 GHz ~ 5.850 GHz
• Country-specific restriction apply.
Antenna • Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 4dBi)
Spatial Streams • 2.4 GHz: 2x2 MIMO
• 5 GHz: 2x2 MIMO
Max Throughput Rate • Up to 400 Mbps at 2.4 GHz
• Up to 867 Mbps at 5 GHz
• 1.267 Gbps per AP
Maximum Wi-Fi Clients • 110
Recommended Wi-Fi Clients • 80
Modulation • OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps
• DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps
• MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity • 11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
• 11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm
(54 Mbps)
• 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
• 11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
• 11ac HT40: -79 dBm (MCS0), -57 dBm (MCS9)
• 11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
Wireless Basic Specification
Maximum Transmit Power • EIRP
• ≤ 32 dBm (2.4GHz)
• ≤ 32 dBm (5GHz)
• country-specific restrictions apply.
Router Basic Specification
Fixed WAN Port • 1 × 10/100/1000 Base-T
Fixed LAN Port(s) • 1 × 10/100/1000 Base-T
LAN/WAN Switchable Port(s) • 3 × 10/100/1000 Base-T
Performance • 600 Mbps (1500Byte, NAT+Flow Audit are enabled)
• 300 Mbps (1500Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control are enabled)
Recommended Total Clients • 150
Power Consumption • ≤ 15 W
System
CPU • 2 Cores, 880 MHz
SDRAM/RAM • 256 MB
Flash Memory • 32 MB SPI NOR FLASH
Power
Power Supplies • DC 12V/1.5A
DC Port Dimensions • Outer Diameter: 5.5 mm
• Inner Diameter: 2.1 mm
• Length: 10 mm
Physical
Indicator • 1 × system LED indicator
• 3 × Mesh LED indicator
Buttons • 1 × Reset button
• 1 × Mesh button
Dimensions(W × D × H) • 120 mm × 120 mm × 28 mm (without mounting plate)
Weight • 0.251 kg (without mounting plate)
Installation • Desk-mount /Wall-mount
MTBF • > 400000 Hours
Environmental
Operating Temperature • 0°C to 40°C (32°F to 104°F)
Storage Temperature • -40°C to 70°C (-40°F to 158°F)
Operating Humidity • 5% to 95% Noncondensing
Storage Humidity • 5% to 95% Noncondensing
Port Surge • 4 kV
IP(Ingress Protection) • IP30
