Model	Ruijie RG-AP630(IODA)
Target Deployments	• For big campus, wireless city, harbour, storage room, mine
Basic Specifications
Radio	• Concurrent dual-radio dual-band
Protocol	• 802.11a/b/g/n/ac
Operating Bands	• 802.11b/g/n: 2.4GHz to 2.483GHz • 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
Antenna	• Built-in Omnidirectional Smart Antenna (support external/internal antenna switching)
Antenna Gain	• 4dBi
Max Throughput	• 450Mbps@2.4GHz • 1.3Gbps@5GHz • 1.75Gbps per AP
Spatial Streams	• 3
Modulation	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receiver Sensitivity	• 11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps) • 11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps) • 11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15 • 11ac HT20: -90dBm (MCS0) , -63dBm (MCS9) • 11ac HT40: -85dBm(MCS0) , -60dBm (MCS9) • 11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)
Maximum Transmit Power	• 27dBm Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.
Adjustable Power	• 1dBm
IP Rating	• IP67
Ports
Service Port	• 1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector); • 1 SFP port (combo with ETH1)
Management Port	• 1 Console Port(RJ45 or Bluetooth)
Power
Power Supply	• PoE+ (802.3at)
Power Consumption	• <25W
WLAN
Maximum clients per AP	• Up to 256
SSID capacity	• Up to 16 per radio • Up to 32 per AP
SSID hiding	• Support
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID	• Support
Remote Intelligent Perception Technology (RIPT)	• Support
X-speed	• Support
Intelligent load balancing based on the number of users or traffic	• Support
STA control	• SSID/radio-based
Bandwidth control	• STA/SSID/AP-based speed control
Preference for 5GHz (band select)	• Support
Wireless position tracking	• Support
Dynamic Frequency Selection(DFS)	• Future Release Support
Security
PSK, Web, and 802.1x authentication	• Support
Data encryption	• WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
QR code authentication	• Support
SMS authentication	• Support
PEAP authentication	• Support
Data frame filtering	• Whitelist, static/dynamic blacklist
User isolation	• Support
Rogue AP detection and countermeasure	• Support
Dynamic ACL assignment	• Support
WAPI	• Support
RADIUS	• Support
CPU Protection Policy (CPP)	• Support
Network Foundation Protection Policy (NFPP)	• Support
Wireless Intrusion Detection System(WIDS)	• Support
Wireless Intrusion Prevention System (WIPS)	• Support
Routing
IPv4 address	• Static IP address or DHCP reservation
IPv6 CAPWAP tunnel	• Support
ICMPv6	• Support
IPv6 address	• Manual or automatic configuration
Multicast	• Multicast to unicast conversion
Management and Maintenance
Network management	• SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management
Visualized wireless heat map analysis	• Support (need to integrate with SNC)
Real-time spectrum analysis	• Support (need to integrate with SNC)
Fault detection and alarm	• Support
Cloud AC management	• Support
Statistics and logs	• Support
FAT/FIT switching	• The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. • The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
External Characteristics
Lock	• Support
LED Indicators	• Power status and WDS signal strength
Relevant Standard
Wi-Fi Alliance Certification	• Support
Safety Standard	• GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
EMC Standard	• GB9254-2008, EN301 489, EN55022, FCC Part15
Health Standard	• FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6
Radio Standard	• FCC Part15,EN300328, EN301893
Vibration Standard	• GB/T 2423
Specifications
Dimensions (W x D x H) (mm)	• 276 × 246 × 90
Weight	• <2.5kg
Work Environment
Temperature	• Operating Temperature: -40°C to 55°C • Storage Temperature: -40°C to 70°C
Humidity	• Operating Humidity: 5% to 95% (non-condensing) • Storage Humidity: 5% to 95% (non-condensing)
Installation Mode	• Wall/pole-mount installation

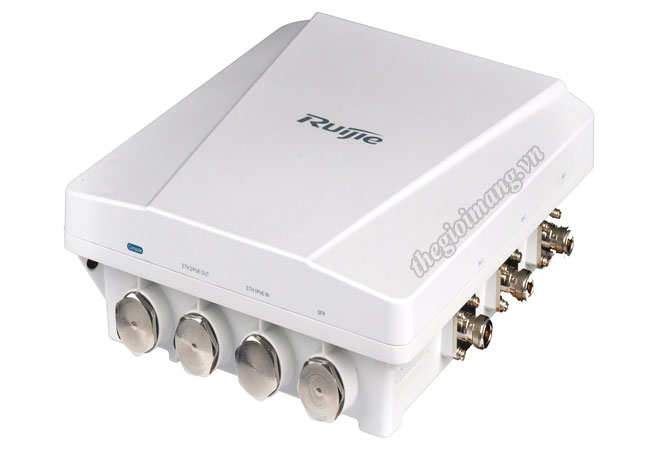

RG-AP630(IODA) : Outdoor Wireless Access Point, IP67 rating, built-in omnidirectional smart antenna and lightning arrester, 3×3 MIMO, 3 spatial streams, support internal/external antenna switching, supportconcurrent802.11a/b/g/n/ac, FAT/FIT mode, PoE+.

Data sheet Ruijie RG-AP630 Outdoor Wireless Access Point Series
