Model	Ruijie AP210-L
Target Deployment	• Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type	• Indoor Ceiling/Wall-mounting
Basic Spec
Radio	• Single-band
Protocol	• 802.11b/g/n
Operating Bands	• 802.11b/g/n: 2.4GHz to 2.483GHz
Antenna	• Built-in Omni-directional Antenna
Antenna Gain	• 2.4G: 3dBi
Max Throughput	• Maximum throughput of 2.4G: 300Mbps • Maximum throughput per AP: 300Mbps
Modulation	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64 QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
Receiver Sensitivity	• 11b: -96dBm(1Mbps), -93dBm (5Mbps), -89dBm (11Mbps） • 11g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) • 11n: -90dBm (MCS0), -70dBm (MCS7), -89dBm (MCS8), -68dBm (MCS15)
Spatial Streams	• 2x2
Maximum Transmit Power	• 100mW
IP Rating	• IP41

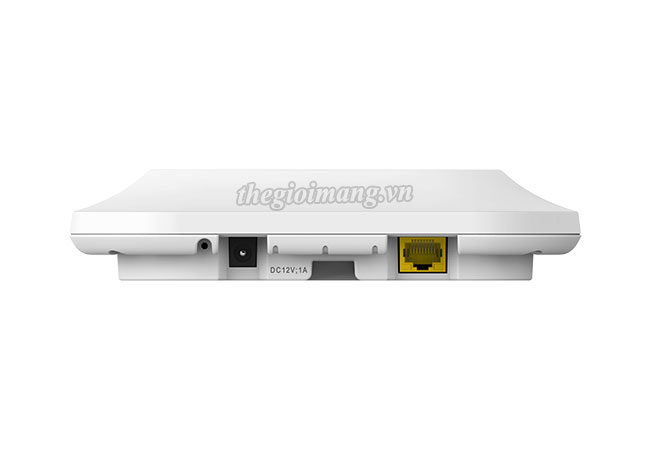

Ports	• 1 10/100BASE-T Ethernet uplink Port LAN1 supports PoE
Power
Power Supply (DC Power adapters should be purchased from third-party vendors separately if needed.)	• local power supply (DC 12V/1A) • PoE (802.3af）
Power Consumption	• <7.5W
WLAN
Maximum clients per AP	• 128
BSSID capacity	• 16
Remote Intelligent Perception Technology (RIPT)	• Support
Intelligent load balancing based on the number of users or traffic	• Support
STA control	• Support
Bandwidth control	• Support
Preference for 5GHz (band select)	• Support
Band Steering (5G Priority)	• N/A
Security
PSK, Web, 802.1x authentication	• Support
PPSK authentication	• N/A
Data encryption	• WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication	• Support
User isolation	• Support
Rogue AP detection and countermeasure	• Support
RADIUS	• Support
Wireless Intrusion Detection System(WIDS)	• Support
Wireless Intrusion Prevention System (WIPS)	• Support
Routing
IPv4 address	• Static IP address or DHCP reservation
IPv6 address	• Manual or automatic configuration
Multicast	• Multicast to unicast conversion
Management and Maintenance
Network management	• SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management	• Support
FAT/FIT switching	• Support
External Characteristics
Lock	• Support
LED Indicators	• 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Relevant Standard
Wi-Fi Alliance Certification	• Support
Radio Standard	• EN300 328 • EN301 893
EMC Standard	• GB9254 • EN301 489-1 • EN301 489-17 • EN 55032 • EN 61000 • EN 55035
Safety Standard	• GB4943 • EN/IEC 60950-1
Specifications
Dimensions (W x D x H) (mm)	• 17517525.8
Weight	• 0.35kg
Work Environment
Temperature	• Operating Temperature: -10°C to 45°C • Storage Temperature: -40°C to 70°C
Humidity	• Operating Humidity: 5% to 95% (non-condensing) • Storage Temperature: 5% to 95% (non-condensing)

RG-AP210-L : Indoor 802.11n Access Point, 2 spatial streams (2.4GHz), access rate up to 300Mbps, 1 10/100BASE-T uplink port; Bundled with Ruijie Cloud Service lifetime license.

Data sheet Ruijie SME Access Point
