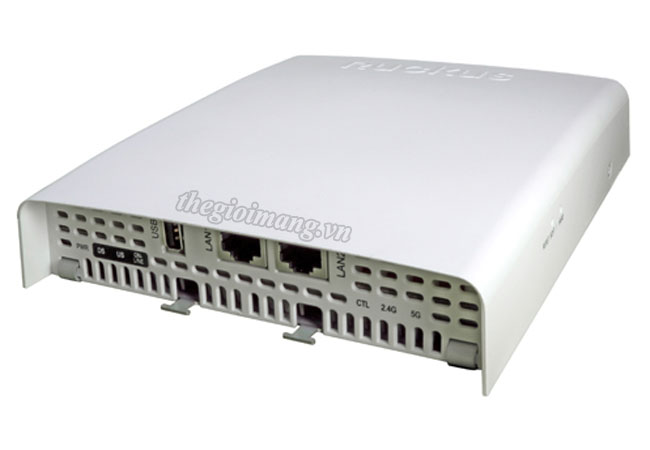

Thiết bị Wi-Fi Indoor Access Point Ruckus C110
| Model | Ruckus C110 |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
| Spatial Streams | · 2 Streams SU/MU-MIMO |
| Channelization | · 20, 40, 80MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| RF | |
| Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides multiple unique antenna patterns per band |
| Antenna Gain (max) | · 2.4GHz: 3dBi · 5GHz: 3dBi |
| Peak Transmit Power (aggregate across MIMO chains) | · 19 dBm for 2.4GHz · 22 dBm for 5GHz |
| Minimum Receive Sensitivity | · -96/-95dBm |
| Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 300Mbps · 5GHz: 867Mbps |
| Client Capacity | · Up to 100 clients per AP |
| SSID | · Up to 32 per AP |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh. |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q (1 per BSSID or dynamic per use based on RADIUS) · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| PHYSICAL INTERFACES | |

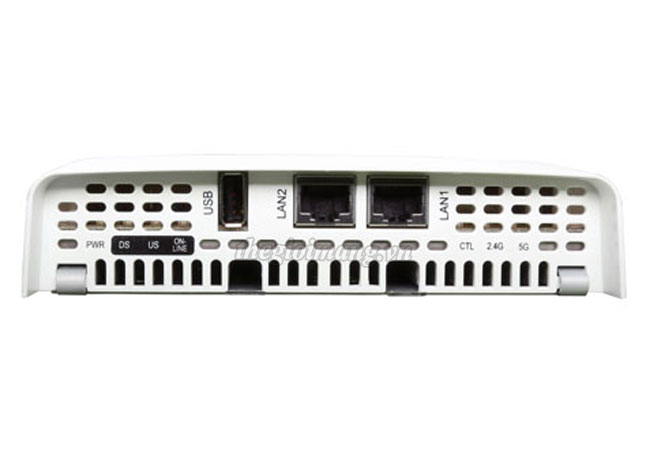

| Ethernet | · 2 x 10/100 Mbps local ports, RJ-45 |
| USB | · 1 USB 2.0 port, Type A |
| Cable Modem | · Type F, DOCSIS/Euro DOCSIS 3.0 8x4 modem port |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 180 (L) x 150(W) x 35(H) mm · 7.09 (L) x 5.9 (W) x 1.38 (H) in |
| Weight | · 386 g (13.62 oz) |
| Mounting | · Electrical wallbox · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · T-bar Torx · Bracket (902-0108-0000) Torx screw & padlock (sold separately) |
| Operating Temperature | · 0°C (32°F) - 40°C (104°F) |
| Operating Humidity | · Up to 95%, non-condensing |
901-C110-US00 : C110, 802.11ac, 2x2:2, Dual Band Concurrent (2.4/5GHz) wall plate AP/CM, DOCSIS, North America power supply
901-C110-EU01 : C110, 802.11ac, 2x2:2, Dual Band Concurrent (2.4/5GHz) wall plate AP/CM, EuroDOCSIS, EU power supply
901-C110-UN00 : C110, 802.11ac, 2x2:2, Dual Band Concurrent (2.4/5GHz) wall plate AP/CM, DOCSIS, North America power supply
901-C110-UK01 : C110, 802.11ac, 2x2:2, Dual Band Concurrent (2.4/5GHz) wall Plate AP/CM, EuroDOCSIS, UK power supply
901-C110-AR00 : C110, 802.11ac 2x2:2 Dual Band Concurrent (2.4/5GHz) wall plate AP/CM, DOCSIS, *No power supply*
901-C110-AU00 : C110, 802.11ac 2x2:2 Dual Band Concurrent (2.4/5GHz) wall plate AP/CM, DOCSIS, Australia/ New Zealand power supply
Data sheet Ruckus C110 Wall-Mounted 802.11ac Wave 2 Wi-FI AP, Switch and Cable Modem
