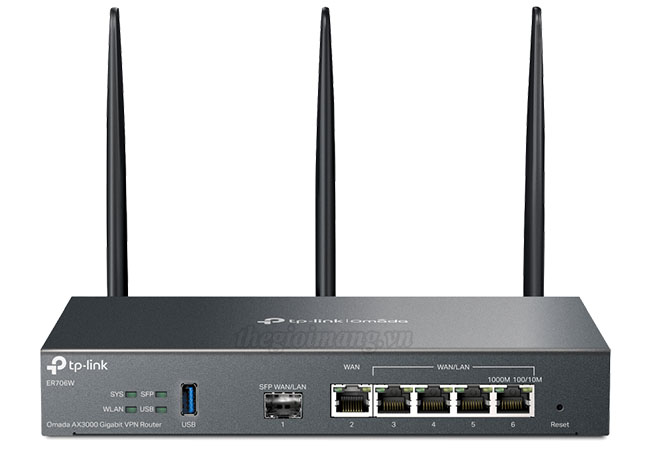

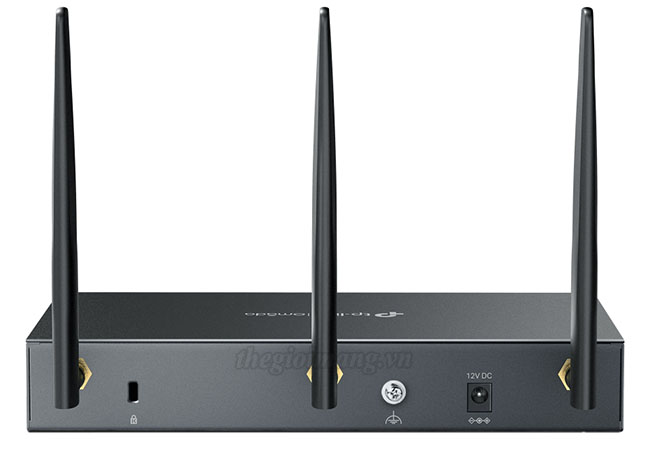

TP-Link ER706W : Omada AX3000 Gigabit VPN Router
Router WiFi TP-Link ER706W là thiết bị định tuyến VPN và WiFi 6 Dual-band AX3000 (tốc độ 2402 Mbps trên băng tần 5 GHz và 574 Mbps trên băng tần 2.4 GHz).
Thông số kỹ thuật TP-Link ER706W
Sản phẩm | ER706W |
TÍNH NĂNG PHẦN CỨNG | |
Giao diện | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage) |
Nút | Nút Reset |
Bộ cấp nguồn | 12VDC / 2A Power Adapter |
Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
Flash | 128 MB NAND |
DRAM | 512 MB DDR4 |
Kích thước ( R x D x C ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
Ăng ten | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
Lắp | Desktop/Wall-mounting |
Tiêu thụ điện tối đa | • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
HIỆU SUẤT | |
GRE | • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps |
WireGuard VPN | 393.5Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 5,100 |
NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps |
OpenVPN | 129.3Mbps |
L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps |
PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps |
SSL VPN Throughput | 126.7Mbps |
66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
KHÁC | |
Chứng chỉ | CE, FCC ,RoHS |
Sản phẩm bao gồm | • ER706W • Power Adapter • Quick Installation Guide |
Môi trường | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
Những tính năng của TP-Link ER706W
BẢO MẬT
TÍNH NĂNG NÂNG CAO
AUTHENTICATION
QUẢN LÝ
|
TÍNH NĂNG WI-FI
CÁC TÍNH NĂNG CƠ BẢN
VPN
|
