Recorder Planet NVR-820

Recorder Planet NVR-820: 8-Ch Network Video Recorder with HDMI
  • Giá bán : 19,821,000 VNĐ
  • Tình trạng : Còn hàng

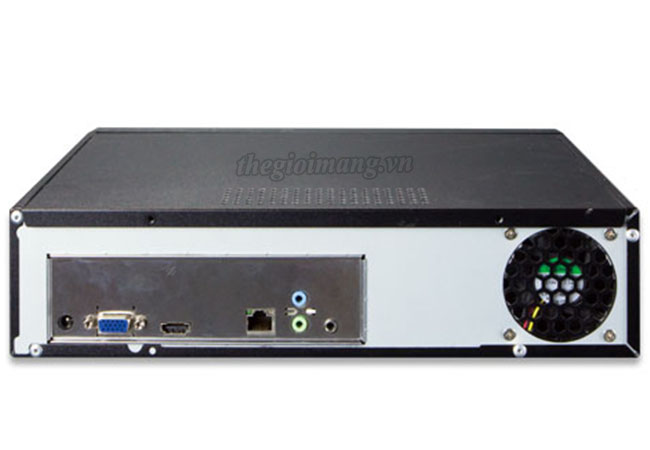

Thiết bị Recorder Planet NVR-820

Product NVR-820
Ethernet 1 x RJ45, 10/100/1000BASE-T
USB Interface 2 x USB 2.0 for backup device and firmware upgrade
Video Interface VGA/HDMI video interface
Audio Interface Mic-in, line-in and line-out
Storage Device 2 x 3.5" SATA II hard disk connectors
LED Power, Status
Button Power, Reset
Max. Channels 8-channel IP cameras
Additional Camera Manual / Smart Camera Search / Auto setup
Compression H.264 / MPEG-4 / M-JPEG
Resolution 5MP / 3MP / 1080p / 720p / FD1 / CIF / QCIF
Max. Live Video Frame Rate (Local Display) 240fps@720p (8-ch)
120fps@1080p (4-ch)
80fps@3MP (2-ch)
*Supports 5MP and Full HD 1080p@60fps
Max. Recording Frame Rate (Local Display) 240fps@1080p (8-ch), 4Mbps per channel, total of 8 channels
120fps@3MP, 6Mbps per channel, total of 8 channels
*Real performance may vary in different environments.
Audio Type 2-way
Audio Format G.711, G.726 (Camera dependent)
Live view
Display Mode Live View / Playback / Full Screen / Sequence View / Saved views
Split Screen 1/4/9
Full Screen 1/4/9
Sequence Mode Sequence all/manually selected cameras in 1/4 split view with configurable timer
Snapshot Video snapshot in JPEG format
PTZ Support Digital PTZ / Auto Pan / Preset Point / Sequence view
Split Screen 1/4
Play Method Play / Pause / Stop / Forward / Reverse/Speed Adjust/Frame by Frame
Search by time or event only
Bookmark Intuitive timeline interface with bookmark function for easy file export
Dual Monitor Main UI + Full screen live view / sequence view
Monitor Resolutions 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Network and Configuration
Network Service TCP / HTTP / SMTP / DHCP / DNS / ARP / P2P / NTP / UPnP / FTP
Streaming Protocols Depending on the supported cameras
Number of Groups 7 (Administrator/Guest/User Define * 5)
Privileges Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance
User Interface
  • Graphic local user interface (Operated by mouse, keyboard)
  • Web Browser (Internet Explorer 7 or above)
  • CMS Utility
Log Type Alert/Event/User Access
Software Utility Search utility/media player for exporting recorded files
Power 19V DC, 4.74A
Consumption 60W
Operating Temperature 5~40 degrees C
Storage Temperature -40~70 degrees C
Humidity 10~90% (non-condensing)
Weight 2.4kg
Dimensions (W x D x H) 315 x 225 x 75 mm

Giá chỉ mang tính tham khảo. Vui lòng liên hệ để có giá tốt nhất.
