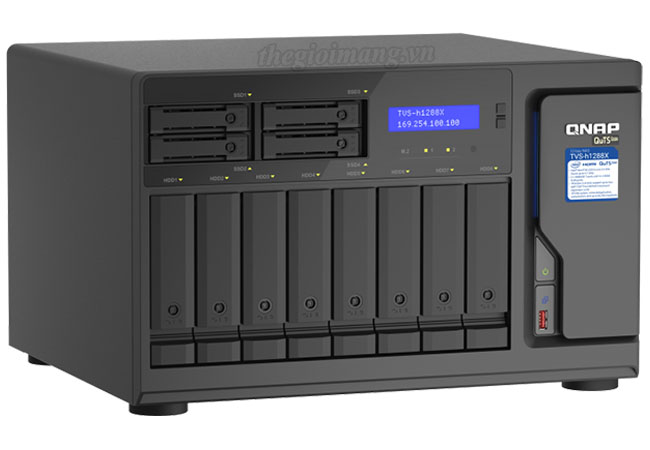

Thiết bị lưu trữ NAS QNAP TVS-h1288X
| Mã sản phẩm | TVS-h1288X-W1250-16G | ||
| CPU | Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) | ||
| CPU Architecture | 64-bit x86 | ||
| Graphic Processors | Intel® UHD Graphics P630 | ||
| Floating Point Unit | ✔ | ||
| Encryption Engine | ✔ (AES-NI) | ||
| Hardware-accelerated Transcoding | ✔ | ||
| System Memory | 16 GB ECC UDIMM DDR4 (2 x 8 GB) | ||
| Maximum Memory | 128 GB (4 x 32 GB) | ||
| Memory Slot | 4 x Long-DIMM DDR4 | ||
| Flash Memory | 5GB (Dual boot OS protection) | ||
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility | 3.5-inch bays: - 3.5-inch SATA hard disk drives - 2.5-inch SATA hard disk drives - 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
||
| Hot-swappable | ✔ | ||
| M.2 SSD Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots | ||
| SSD Cache Acceleration Support | ✔ | ||

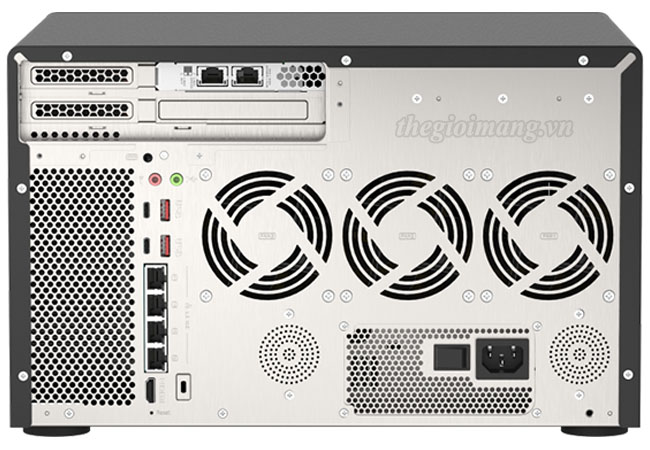

| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 | ||
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter | ||
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) | ||
| Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter | ||
| PCIe Slots | 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 |
||
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 3 x Type-A |
||
| Media I/O | - HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) - Audio Input: 1 x 3.5 mm dynamic microphone jacks - Audio Output: 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) |
||
| Form Factor | Tower | ||
| LED Indicators | System status, LAN, USB, Disk 1~12, M.2 SSD 1~2 | ||
| LCD Display/ Button | ✔ | ||
| Buttons | Power, Reset, USB Auto Copy | ||
| Dimensions (HxWxD) | 234.6 × 369.9 × 319.8 mm | ||
| Weight (Net) | 11.27 kg | ||
| Operating temperature | 0 - 40 °C | ||
| Power Supply Unit | 550W PSU, 100~240V | ||
| Power Consumption | 97.492 W | ||
| Fan | System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
||
| Max. Number of Concurrent Connections (CIFS) | 9000 | ||
8-Bays, Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz), 6 GB DDR4 ECC memory (2 x 8 GB), ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications.
