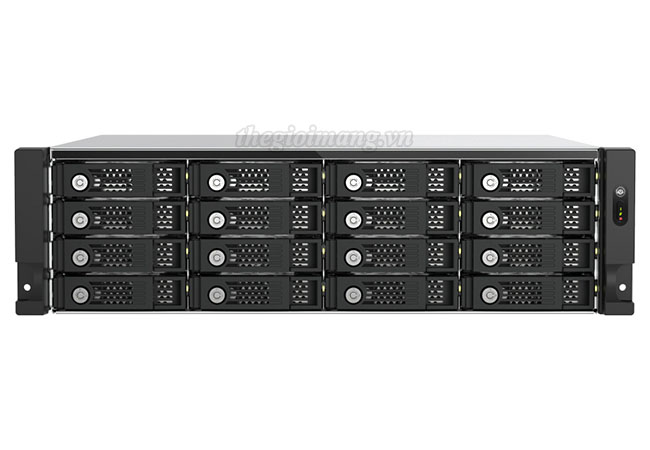

Thiết bị lưu trữ mở rộng QNAP TL-R1600PES-RP - 16-bay 3.5", Mini-SAS HD (SFF-8644) 1 x 2 (in, out), redundant power supply.
Thiết bị lưu trữ mở rộng NAS QNAP TL-R1600PES-RP
| SKU | TL-R1600PES-RP |
|---|---|
| Drive Bays | 16 x 3.5-inch SATA 6Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| Form Factor | 3U Short Depth Rackmount |
| Host Interface | Mini-SAS HD (SFF-8644) 1 x 2 (in, out) |
| LED Indicators | Front panel: HDD 1-16, Power, Status, Link, Fan error Rear panel: SAS connector, Enclosure ID |
| Buttons | Power |
| Dimensions (HxWxD) | 131.3 × 482.2 × 425.3 mm |
| Weight | 11.56~16.67 kg |
| Max. number of HDDs/SSDs supported | 16 |
| Hard Drive Type | 3.5" or 2.5" SATA 6Gb/s and 3Gb/s drives |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W (x2), 100-240V |
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Management | Managed via QNAP QTS / QuTS hero OS 1. Supports disk S.M.A.R.T. information 2. RAID expansion enclosure identifier 3. Locate RAID expansion enclosures 4. Locate hard disks on RAID expansion enclosure 5. Smart fan control by detecting system and hard drive temperature 6. Support Host-Based Power Management |
Data sheet QNAP TL-R1600PES-RP
| Danh sách sản phẩm NAS QNAP TL-R1600PES-RP hỗ trợ | ||
| 8 Bays | TS-855eU, TS-855eU-RP | |
| 9 Bays | TS-h987XU-RP | |
| 10 Bays | TS-h1090FU | |
| 18 Bays | TS-h1887XU-RP | |
| 22 Bays | TS-h2287XU-RP | |
| 24 Bays | TDS-h2489FU, TS-h2490FU | |
| 30 Bays | TS-h3087XU-RP | |
Liên hệ để có giá tốt
