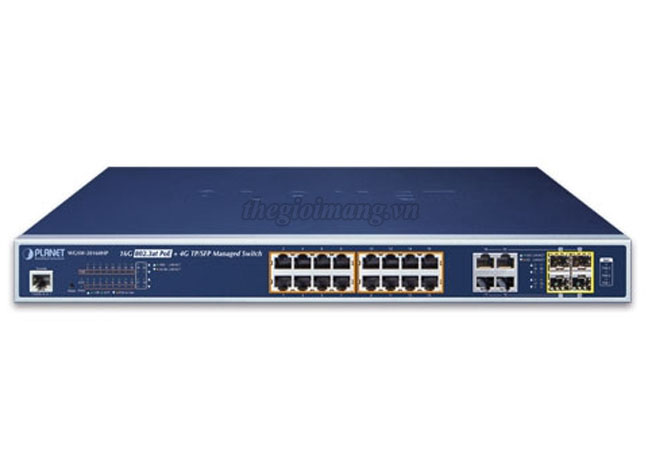

Model	WGSW-2016HP
Hardware Specifications
Copper Ports	16 10/ 100/1000BASE-T RJ45 auto-MDI/MDI-X ports
10/100/1000Mbps / SFP Combo Interfaces	4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (mini-GBIC) Supports 100/1000Mbps Dual mode DDM, shared with Port-17 to Port-20
PoE Injector Port	16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
Console	1 x RJ45 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot > 5 sec: Factory Default
Smart Fan	3
Power Requirements	100~240V AC, 50/60Hz, 4A
Power Consumption (Full Loading)	282 watts/962BTU
ESD Protection	6KV DC
Dimensions (W x D x H)	440 x 300 x 44.5 mm, 1U high
Weight	3.9 kg
Switching
Switch Architecture	Store-and-Forward
Switch Fabric	40Gbps / non-blocking
Throughput	29.7Mpps@64Bytes
Address Table	8K entries, automatic source address learning and ageing
SDRAM	256Mbits
Flash	64Mbytes
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	9K bytes
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 590mA. max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	220 watts max. @25 degrees C 190 watts max. @50 degrees C
Environment & Standards
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE.

Data sheet Planet WGSW-20160HP

Layer 3 Functions
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing IPv6 software static routing
Layer 2 Functions
Port Configuration	Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring	TX / RX / Both Many-to-1 monitor
VLAN	802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP / Static Trunk Supports 10 trunks groups with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, Strict priority and WRR 8-Level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet
IGMP Snooping	IPv4 IGMP Snooping (v1/v2/v3) IPv4 IGMP Querier mode support Up to 255 multicast groups
MLD Snooping	IPv6 MLD Snooping ((v1/v2) IPv6 MLD Querier mode support Up to 255 multicast groups
Bandwidth Control	Per port bandwidth control Ingress: 100Kbps~3276Mbps Egress: 100Kbps~3276Mbps
Security Functions
Access Control List	IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries
Security	Port security IP source guard Dynamic ARP inspection Command line authority control based on user level
AAA	RADIUS client TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication
Management Functions
Basic Management Interfaces	Console; Telnet; Web Browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility
Event Management	Remote Syslog Local System log SMTP
ONVIF	ONVIF device discovery ONVIF device monitoring Floor Map
