WiFi Planet WDRT-1202AC

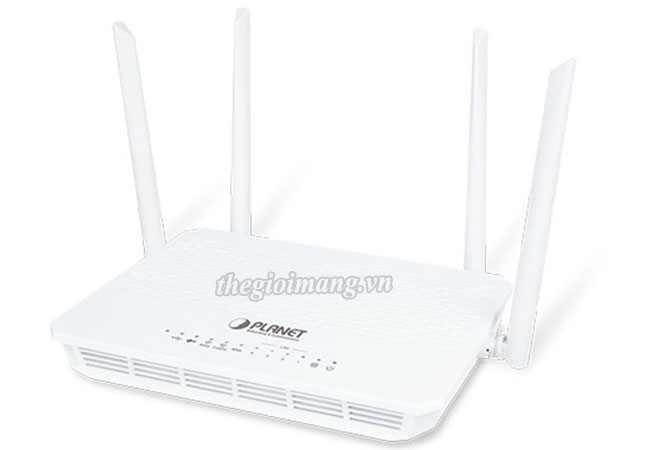

Router WiFi Planet WDRT-1202AC: 1200Mbps 802.11ac Dual Band Wireless Gigabit Router

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Hết hàng


Thiết bị Router WiFi Planet WDRT-1202AC

Product WDRT-1202AC
Hardware Specifications
Interface WAN Port: 1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port
LAN Port: 4 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port (LAN1~4)
USB Port: 1 x USB 2.0, Type A, 5V 500mA
Antenna Gain:
  • 2.4GHz: 2 x 5dBi external antenna
  • 5GHz: 2 x 5dBi external antenna
Button 1 x Power ON/OFF button
1 x reset button (Press for about 10 seconds to reset the device to factory default.)
1 x WPS/Wi-Fi button (Press for over 5 seconds to enable or disable WLAN function; press over 15 seconds to enable WPS function.)
LED Indicators PWR x 1
Internet x 1
LAN x 4
WAN x 1
WLAN (2.4GHz & 5GHz) x 2
WPS x 1
USB x 1
Material Plastic
Dimensions (W x D x H) 205 x 128 x 30 mm (W x D x H)
Weight 308g
Power Requirement 12V DC, 1.5A
Wireless Interface Specifications
Standard IEEE 802.11ac 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency Band Simultaneous 2.4GHz and 5GHz
Data Rates 2.4GHz up to 300Mbps
5GHz up to 867Mbps
Channel Width 802.11ac: 20/40/80MHz
802.11n: 20/40MHz
Max. RF Power / EIRP 2.4GHz: < 20dBm
5GHz: < 20dBm
Wireless Output Power 2.4 GHz:
  • 11b@11M 20dBm
  • 11g@54M 18dBm
  • 11n@MCS7 17dBm
5 GHz:
  • 11a@54M 19dBm
  • 11n@MCS7 18dBm
  • 11ac@MCS9 18dBm
Transmit Power Control Low, Medium, High
Wireless Management Features
Encryption Security WPA/WPA2 personal mixed mode
Wireless Security Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup )
Wireless Advanced Supports dual-SSID (2.4G and 5G)
Supports guest network
Max. Supported Clients 2.4GHz wireless: 32
5GHz wireless: 32
Router Features
Internet Connection Type Shares data and Internet access for users, supporting the following Internet accesses:
■ DHCP
■ Static IP
■ PPPoE
■ PPTP
■ L2TP
Firewall NAT firewall, SPI firewall
Built-in NAT server which supports Port Forwarding and DMZ
Built-in firewall with URL filtering, and MAC address filtering
LAN Built-in DHCP server supporting static IP address distribution
Supports packet statistics
USB Sharing Samba
DLNA media server
System Management Web-based (HTTP) management interface
Remote management (WAN Access Control)
Supports UPnP, PLANET DDNS
SNTP synchronization
System log
Standards Conformance
IEEE Standards IEEE 802.11ac (2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Environment
Temperature Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C
Humidity Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)

Giá chỉ mang tính tham khảo. Vui lòng liên hệ để có giá tốt nhất.
